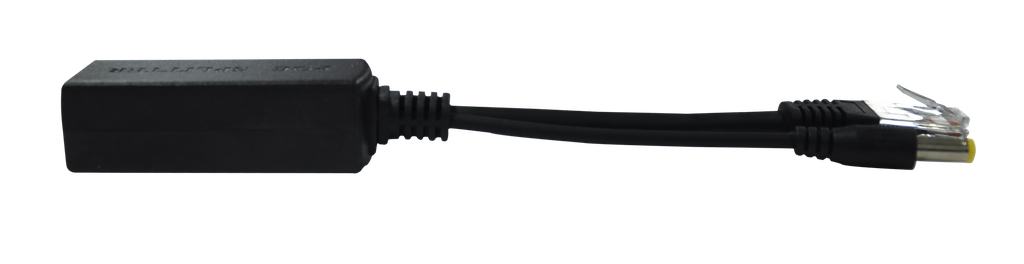

POE101
*PoE port: 1 x 10/100M RJ45 port / Split cable: 1 x DC cable and 1 x network cable
* Supports IEEE802.3af Power over Ethernet standard.
* Supports both end jumper (1/2+; 3/6-) and center jumper (4/5+; 7/8-) power supply modes.
* Supports 12V output
Product Description
PoE101 Hundred Gigabit PoE splitter cable is a cost-effective, high-performance and high-reliability, and based on the IEEE802.3af standard remote power receiving equipment, can be transmitted through the network cable power and data signals are separated, respectively, transmitted to the network terminals, in place of the network terminals of the power receiving function.
Physical Characteristics
Model | PoE101 |
Voltage input | DC 44~57V |
Output Voltage | DC 12V |
DC Output Maximum Current | 1A |
Output Maximum Power | 12W |
Port Description
| PoE Ports：1个10/100M RJ45 Ports |
Separate cables: 1*DC cable and 1*network cable | |
Transmission Rate | 10/100Mbps |
Power Mode | Supports 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-) power supply modes |
Standard Protocol | IEEE802.3i Base-T IEEE802.3u Base-TX IEEE802.3af Power over Ethernet |
Ambient Temperature | Working temperature: 0℃～45℃, working humidity: 10%~90% |
Storage Temperature: -20℃～70℃, Storage Humidity: 5%～95 |
Specifications
| Version | V2.0 or V1.1 or V1.2 |
| Attributes | Labeled or OEM |
| Housing Color | White or Black |
