POE101

https://www.acorid.com/web/image/product.template/56252/image_1920?unique=74b4208
(0 review)

*PoE port: 1 x 10/100M RJ45 port / Split cable: 1 x DC cable and 1 x network cable
* Supports IEEE802.3af Power over Ethernet standard.
* Supports both end jumper (1/2+; 3/6-) and center jumper (4/5+; 7/8-) power supply modes.
* Supports 12V output

0.12 0.12 USD 0.12

¥ 1.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 Description       Specifications       Videos       Resources       Reviews

Product Description

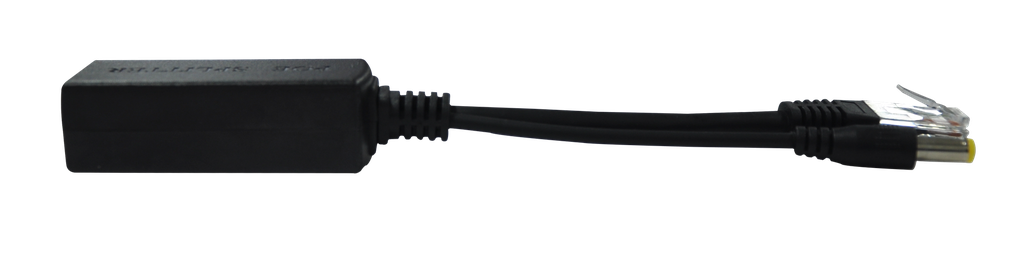

PoE101 Hundred Gigabit PoE splitter cable is a cost-effective, high-performance and high-reliability, and based on the IEEE802.3af standard remote power receiving equipment, can be transmitted through the network cable power and data signals are separated, respectively, transmitted to the network terminals, in place of the network terminals of the power receiving function.


Physical Characteristics

Model

PoE101

Voltage input

DC 44~57V

Output Voltage

DC 12V

DC Output Maximum Current

1A

Output Maximum Power

12W

Port Description



PoE Ports:1个10/100M RJ45 Ports

Separate cables: 1*DC cable and 1*network cable

Transmission Rate

10/100Mbps

Power Mode

Supports 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-) power supply modes

Standard Protocol

IEEE802.3i Base-T

IEEE802.3u Base-TX

IEEE802.3af Power over Ethernet

Ambient Temperature

Working temperature: 0℃~45℃, working humidity: 10%~90%

Storage Temperature: -20℃~70℃, Storage Humidity: 5%~95
