LS8T

https://www.acorid.com/web/image/product.template/56098/image_1920?unique=74b4208
(0 review)

* 8*10/100M RJ45 ports
* Backplane Bandwidth: 1.6Gbps
* Packet Forwarding Rate:1.19Mpps
* Port supports MDI / MDIX automatic flip function

0.12 0.12 USD 0.12

¥ 1.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 Description       Specifications       Videos       Resources       Reviews

Product Description

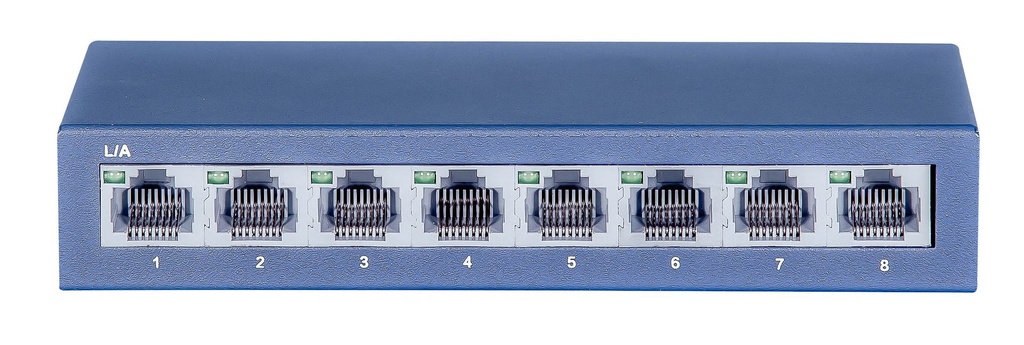

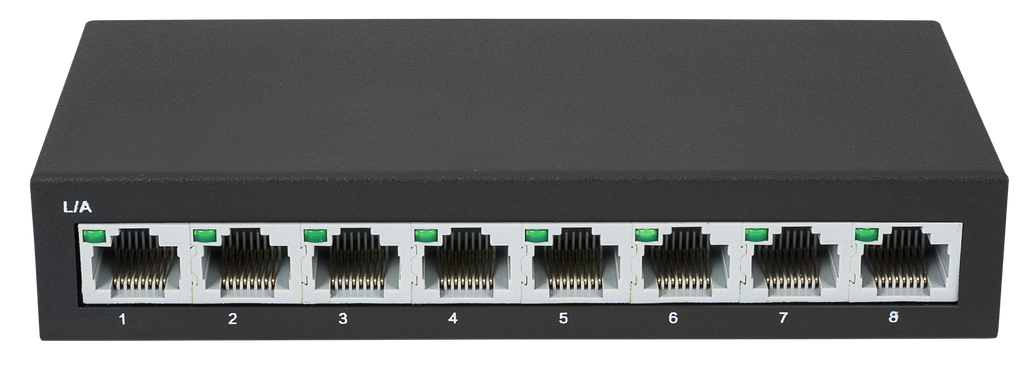

LS8T is a unmanaged Ethernet switch independently developed by ACORID, it provides 8*10/100M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX auto flip-flop and wire speed forwarding.

It can quickly adapt to various complex environments. The device is plug and play, no need to configure, simple and easy to use. It can be used for security monitoring, access layer in hotels, campuses, factory dormitories and wireless coverage in small and medium-sized enterprises.

Specifications


Downlink Ports

8*10/100M RJ45 ports

Uplink ports


Total Power Supply


LED Indicator

PWR, Link / Act

Transmission Mode

 IEEE802.3 full duplex flow control

Backplane Bandwidth

1.6Gbps

Packet Forwarding Rate

1.19Mpps

MAC Address

4K

Port lightning protection

6KV

Standard Protocol

IEEE802.3u 100 BASE-TX

Power Supply

AC 100~240V 50/60HZ

Size

139mm × 66mm ×26mm

Working Temperature

0℃~45℃

Storage Temperature

- 20℃~70℃
