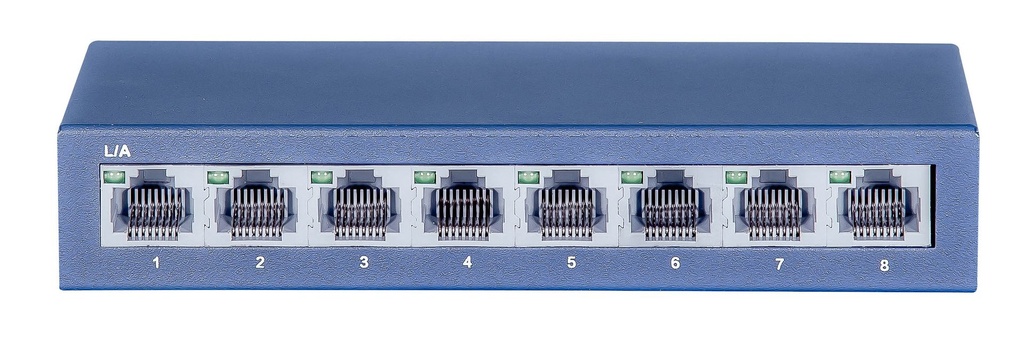

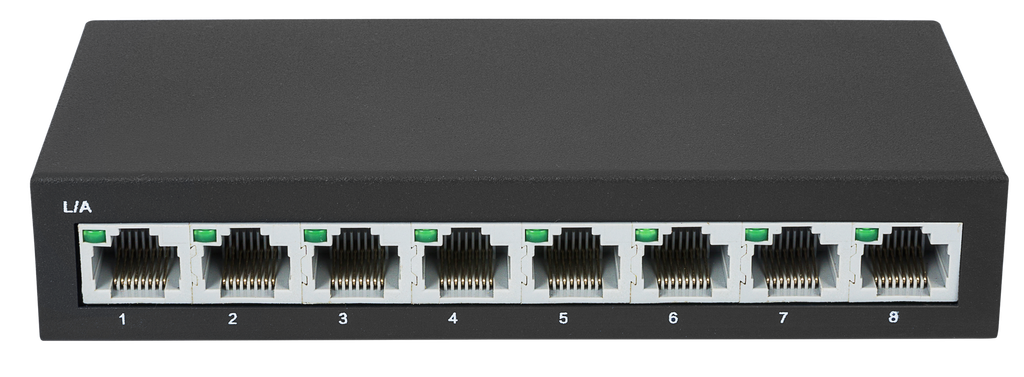

LS8GT
* 8*10/100/1000M RJ45 ports
* Backplane Bandwidth: 16Gbps
* Packet Forwarding Rate:11.9Mpps
* Port supports MDI / MDIX automatic flip function
Product Description
LS8GT is a full Gigabit Division-type Ethernet switch developed independently, which provides 8*10/100 / 1000M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100/1000M RJ45 Ports | Uplink ports |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 16Gbps |
Packet Forwarding Rate 11.9Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 139mm × 66mm ×26mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Videos
Resources
Specifications
| Language | Chinese or English |
| Power Cable | South African Standard or None or International Standard or European Standard or British Standard or American Standard |
| Attributes | Labeled or Neutral or OEM |
