Product Description

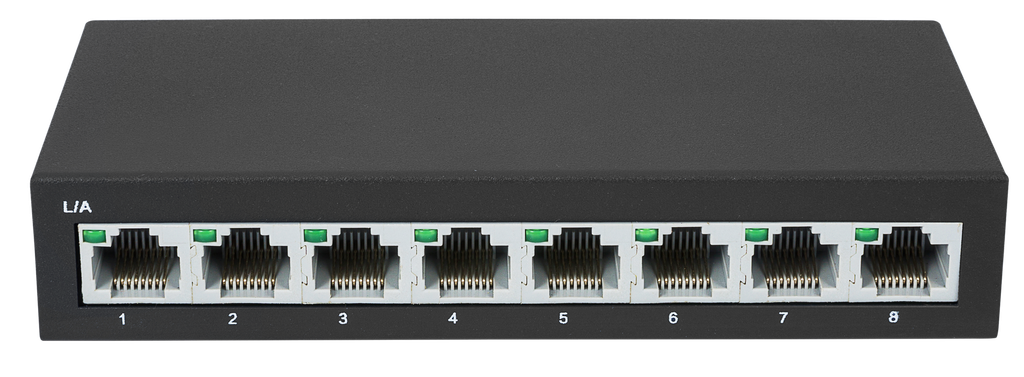

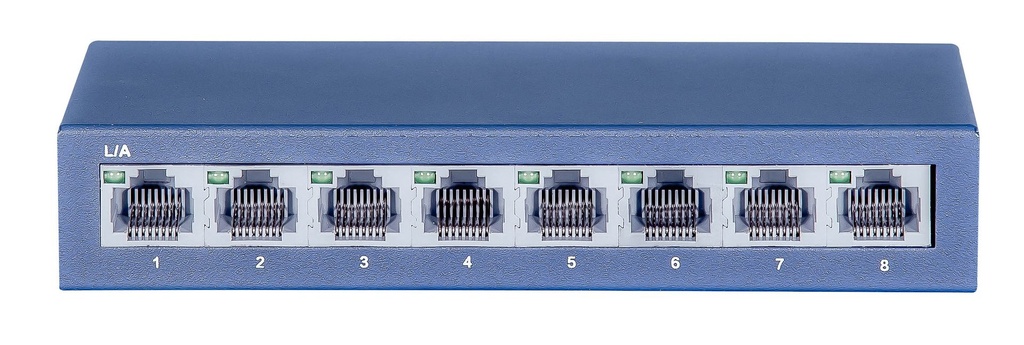

LS8GT is a full Gigabit Division-type Ethernet switch developed independently, which provides 8*10/100 / 1000M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100/1000M RJ45 Ports | Uplink ports |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 16Gbps |
Packet Forwarding Rate 11.9Mpps | MAC Address 4K |
Port lightning protection 4KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 139mm × 66mm ×26mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Product performance
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
easy to use
● Plug and play, no need to configure, simple and convenient
● Users can use the power indicator (Power), port status indicator (Link/Act)
