Product Description

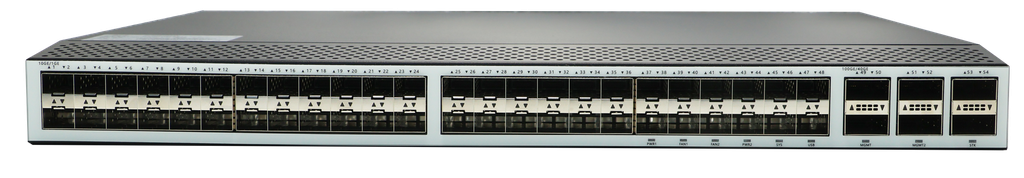

The LS6200G-48X6S-L3M switch is a high-performance, high-density 10 Gigabit Ethernet switch. It features an advanced hardware architecture design with hot-swappable power supply redundancy. The switch supports up to 48 * 1G/10G SFP+ ports and 6 * 40GE/100GE QSFP28 uplink ports, offering full-port Layer 2/Layer 3 line-rate forwarding, IPv6 support, ACL policies, network security, and a range of other business features.
Specifications
48*10/100/1000M RJ45 | Main chip Marvell 98DX8548 | |
Uplink ports 6*40G/100G QSFP28 |
1GB | |
Transmission Mode Store and Forward | Flash Memory 8GB | |
Console port 1*RJ45 | Switching Capacity 2160Gbps | |
Power Consumption ≤ 220W | Forwarding Rate 1607Mpps | |
Input voltage AC 100-240V 47/63Hz DC 20V~60V | Packet Buffer 48Mbit | |
Surge Protection 6kv | Jumbo Frame 10k | |
Product size（W x D x H） 440mm x 410mm x 44mm | MAC Address 32K | |
Installation Rack Mounting | IP Routers 32 static routes | |
Product weight 9Kg | Number of VLANs 4K | |
Operating temperature -10 ℃~50 ℃ | Storage temperature - 40℃～70℃ |
