Product Description

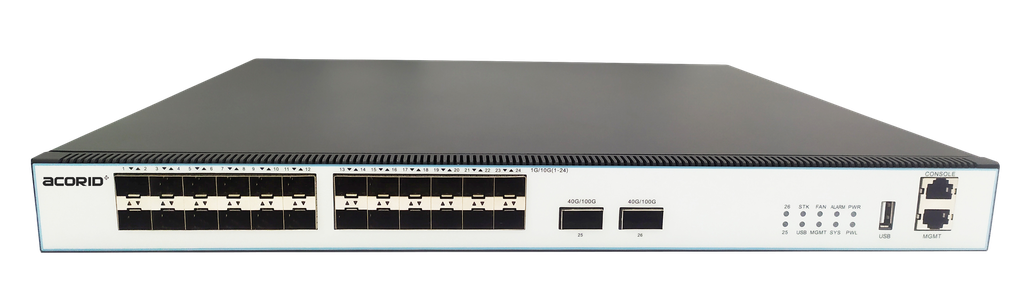

LS6200G-24X2S-L3M switch is a high-performance full 10G access, 40G and 100G uplink core routing Layer 3 switch product. It can not only meet the high-density and high-bandwidth network application requirements of the next-generation enterprise network, data center and metropolitan area network, but also meet the application requirements of telecom network operators or campus Ethernet aggregation layer or access layer, and can also be used as a data center connection layer. The entry layer and the core layer of small and medium-sized enterprises provide rich server access solutions for the data center.
LS6200G-24X2S-L3M switch supports rich service features, including L2, L3, VXLAN, OAM/APS and other features, supports security and flow control features, hardware-based NetFlow, and high-precision clock features.
The product has an elastic stacking function, which virtualizes multiple devices into one logical entity, which can not only meet the expansion of ports and switching capacity, but also realize the unified management, upgrade, and maintenance of multiple devices. In response to the requirements of large data traffic and non-blocking transmission in the data center, the product can provide a strong cache capacity, and support an advanced cache scheduling mechanism to ensure the maximum effective use of the device cache capacity. It is designed to meet the high-density and high-bandwidth network application requirements of next-generation enterprise networks, data centers and metropolitan area networks. It can be applied to network operators or campus Ethernet aggregation layer or access layer, and can also be used as data center access layer, small and medium-sized enterprise core layer, and provides rich server access solutions for data centers.
Specifications
Downlink Ports 24*1000M Base-X SFP/10GE SFP+ | Uplink ports 2*40G QSFP+2*100G QSFP28 |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode full duplex flow control | Backplane Bandwidth 880Gbps |
Packet Forwarding Rate 654Mpps | MAC Address 32K |
Port lightning protection ≥6KV | Standard Protocol IEEE802.3i 10 BASE-T |
Power Supply AC： 100～240V 47/63Hz DC： 36V～75V | Size 440mm×320mm×43.6mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Product performance
Carrier-level equipment stability
● support IPv4/IPv6 dual protocol stack platform
● Support multiple link redundancy and network redundancy protocols such as
● STP/RSTP/MSTP/ERPS/LACP
Perfect safety mechanism
● Support ACL security filtering mechanism, which can provide security control
functions based on MAC, IP, L4 port
● Support ARP attack automatic protection and user blocking functions
● Support DHCP attack automatic protection based on Mac Address and user
blocking functions
● Support DDOS and virus attack protection
● Support DHCP-snooping/IP-source-Guard/802.1X and other security features
● Support link protection functions such as BFD, FlexLink, LACP and ERRP
● Support remote loop detection function
● Support CFM、EFM
● Support remote user authentication based on Tacacs+, Radius, and Local user
Ÿauthentication
Powerful QoS capabilities
● Support port speed and flow speed limit function
● Support classification based on service flow and Qos flow control function
● Support queue scheduling algorithms such as SP/WRR/SP+WRR
● Support port-based and service flow-based mirroring functions
Enhanced multi-service capabilities
● Support DHCP Server and DHCP Relay
● Support L2-Tunnel
● Support Ethernet OAM protocol such as CFM、EFM
Rich routing protocol
● Support static route
● Support dynamic route such as RIP, OSPF,BGP, ISIS
Simple and easy-to-use network management function
● Support CLI based on RS232 serial port, Telnet and SSHv2
● Support WEB-based configure operation management, support SNMP V1/V2/V3
● Support remote upgrade or equipment through FTP and TFTP
