Product Description

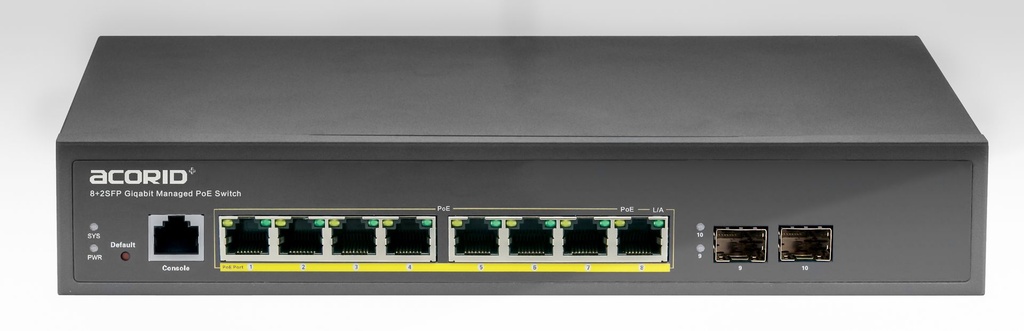

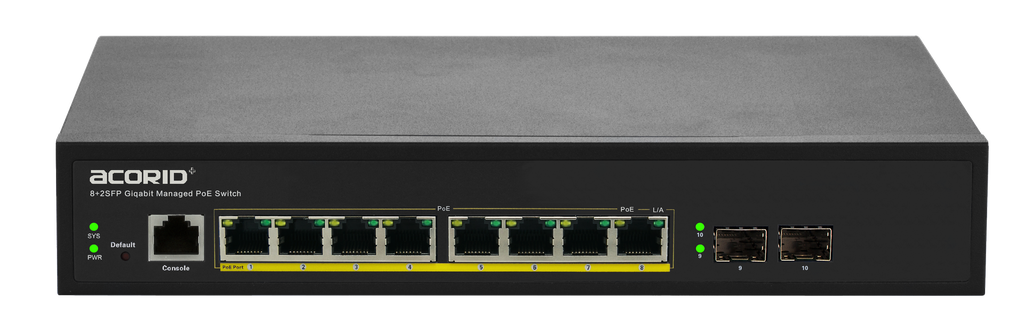

The LS6100G-8P2F-L2M The management switch is a 8 port full Gigabit two-layer management switch . It adopts a new generation of high-performance hardware and software platform, provides flexible and cost-effective full Gigabit access and uplink ports, supports complete security protection mechanism, perfect ACL / QoS strategy and flexible VLAN function, is easy to manage and maintain, meets the user's networking needs for easy management, high security and low cost of network equipment, and is suitable for campus Hotel and enterprise park network access, gathering a variety of application scenarios.
Specifications
Downlink Ports 8*10/100/1000M RJ45 ports | Uplink ports 2*1000M SFP fiber |
Total Power Supply 120W/150W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 20Gbps |
Packet Forwarding Rate 14.88Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |

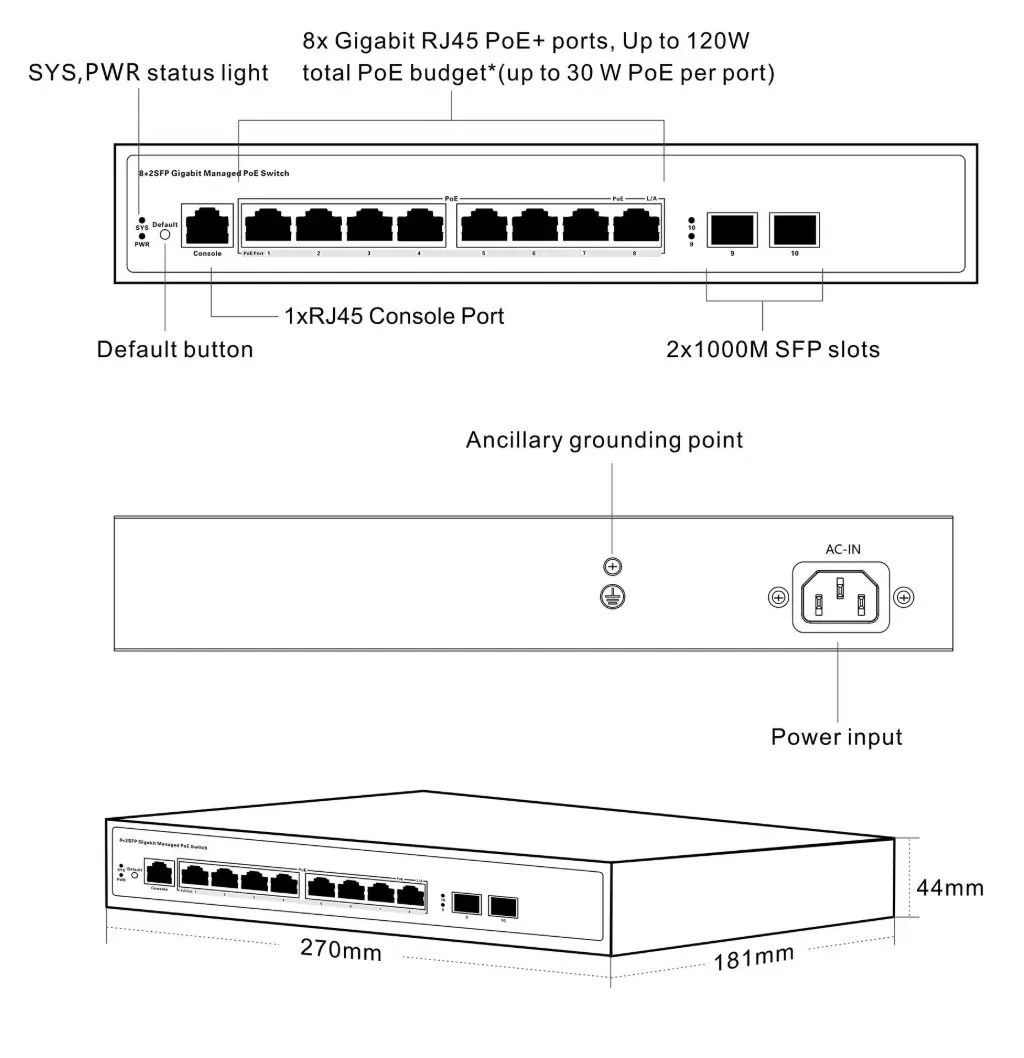

Power Supply AC 100~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
