Product Description

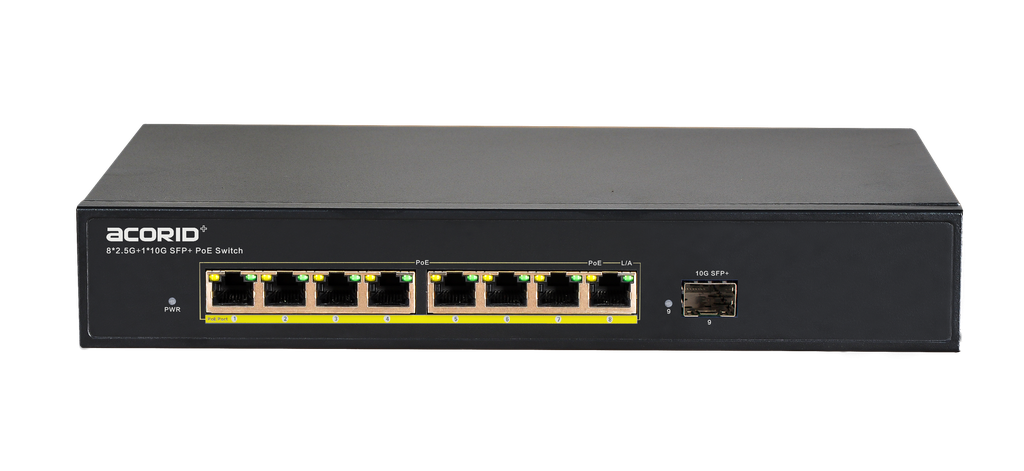

The LS6100G-8HP1X is a 10G uplink unmanaged PoE switch independently developed by acorid. It offers 8*2.5G RJ45 ports and 1 10G SFP+ optical port. Each RJ45 port supports MDI/MDIX auto-sensing and wire-speed forwarding functions. This device is plug-and-play, requires no configuration, and is easy and convenient to use, meeting the demands of high-speed internet access. It is the ideal choice for hotel, campus, factory dormitory, and small and medium-sized enterprise security monitoring and wireless coverage.
Specifications
Downlink Ports 8*10/100/1000/2500M RJ45 ports | Uplink ports 1*10G SFP+ fiber |
Total Power Supply 150W/250W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 60Gbps |
Packet Forwarding Rate 44.88Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 200~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
