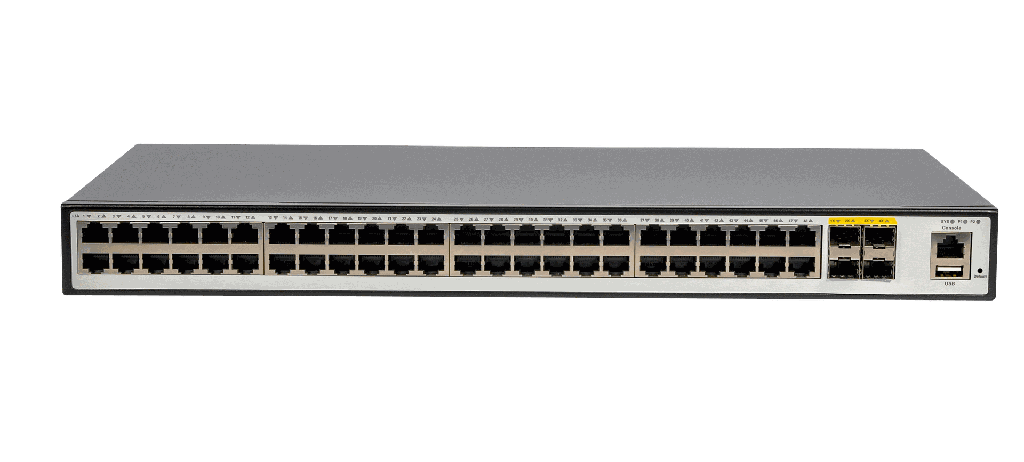

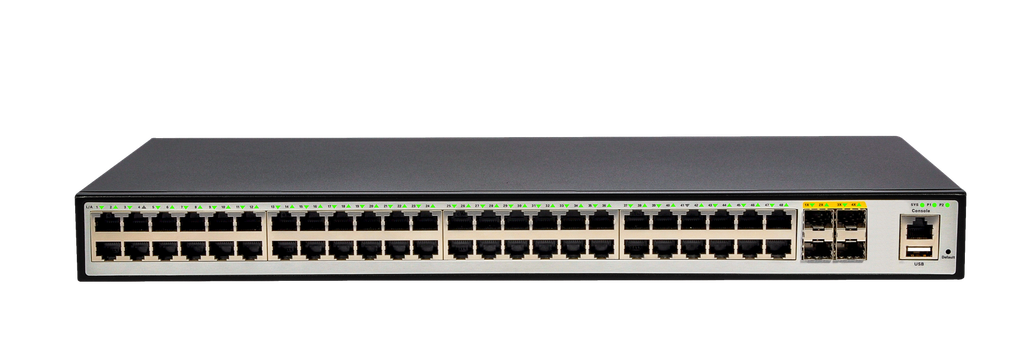

LS6100G-48T4X-L3M

https://www.acorid.com/web/image/product.template/56078/image_1920?unique=74b4208
(0 review)

* 48*10/100/1000M Self-negotiation RJ45 port
* 4*10G SFP+
* Backplane Bandwidth:176Gbps
* Packet Forwarding Rate:130.94Mpps
* 3-layer network management function

0.12 0.12 USD 0.12

¥ 1.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 Description       Specifications       Videos       Resources       Reviews

Product Description


The LS6100G-48T-4X-L3M 10-Gigabit uplink 48-port Gigabit managed switch is an aggregation/core switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible full Gigabit access and Cost-effective 10 Gigabit uplink ports, support three-layer routing protocol, complete security protection mechanism, complete ACL/QoS strategy and rich VLAN functions, easy to manage and maintain, suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses

Specifications


Downlink Ports

48*10/100/1000M RJ45 ports

Uplink ports

4*10G SFP+

Total Power Supply


LED Indicator

PWR, Link / Act

Transmission Mode

 IEEE802.3 full duplex flow control

Backplane Bandwidth

176Gbps

Packet Forwarding Rate

130.94Mpps

MAC Address

32K

Port lightning protection

6KV

Standard Protocol

IEEE802.3ab 1000 BASE-T

IEEE802.3z 1000 BASE-LX

IEEE802.3ae 10GBase

Power Supply

AC 100~240V 50/60HZ

Size

440mm × 360mm × 44mm

Working Temperature

0℃~45℃

Storage Temperature

- 20℃~70℃
