Product Description

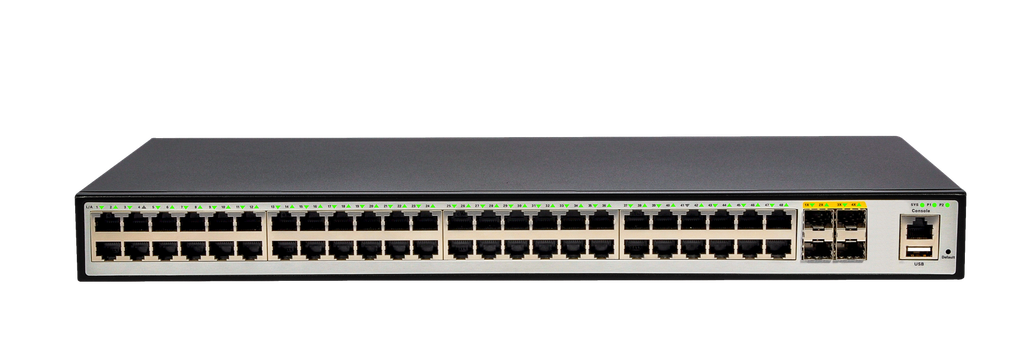

The LS6100G-48T4F-L2M is a next-generation, high-performance Layer 2 aggregation switch designed for high-bandwidth access and converged network deployments. It features 48×10/100/1000Mbps RJ45 ports , and 4 × GSFP uplink ports, delivering a cost-effective, stable, and reliable solution for enterprise networking and backbone aggregation. Built on an advanced hardware architecture and a mature software platform, the switch supports complex networking requirements with robust performance and scalability.
Specifications
48*10/100/1000M RJ45 | Main chip RTL9311 | |
Uplink ports 4 × 10G SFP+ |
512MB | |
Transmission Mode Store and Forward | Flash Memory 32MB | |
Console port 1*RJ45 | Switching Capacity 104Gbps | |
Power Consumption 60W | Forwarding Rate 77.37Mpps | |
Input voltage AC 100-240V 50/60Hz | Packet Buffer 16Mbit | |
Surge Protection 6kv | Jumbo Frame 12k | |
Product size（W x D x H） 440mm x 220mm x 44mm | MAC Address 16K | |
Installation Rack Mounting | IP Routers | |
Product weight 3.2Kg | Number of VLANs 4K | |
Operating temperature 0°C - 45°C | Storage temperature - 40℃～70℃ |
