Product Description

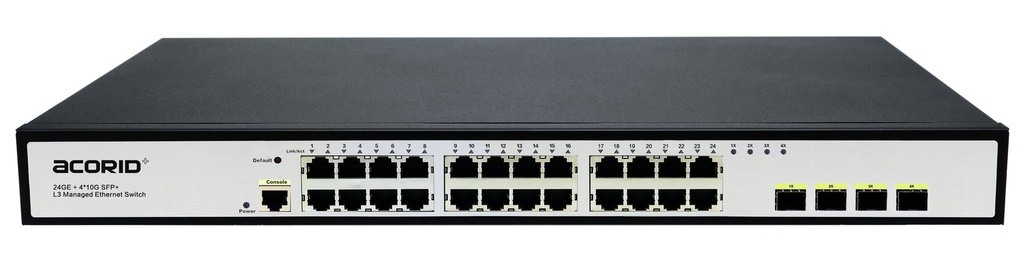

The LS6100G-24T-4X-L3M 10-Gigabit uplink 24-port Gigabit managed switch is an aggregation/core switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible full Gigabit access and Cost-effective 10 Gigabit uplink ports, support three-layer routing protocol, complete security protection mechanism, complete ACL/QoS strategy and rich VLAN functions, easy to manage and maintain, suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses .
Specifications
Downlink Ports 24*10/100/1000M RJ45 ports | Uplink ports 4*10G SFP+ |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 128Gbps |
Packet Forwarding Rate 95.23Mpps | MAC Address 16K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3ae 10GBase |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃~45℃ | Storage Temperature - 20℃~70℃ |
