Product Description

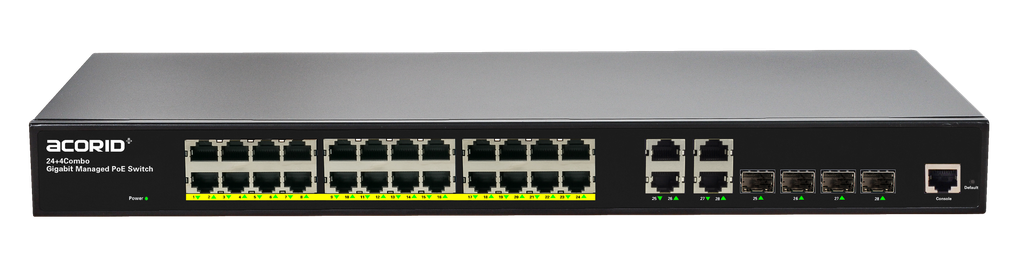

The LS7700G-24P4C-L3M management switch is a total of 24-port all-gigably three-tier management switches, adopting a new generation of high-performance hardware and software platforms, providing flexible, cost-effective full Gigabit access and upstream ports, support Complete security protection mechanism, perfect ACL / QoS policy and flexible VLAN feature, easy to manage maintenance, meet users to manage, high security, low-cost networking requirements for network equipment, suitable for campus, hotel and enterprise park network Enter, gather a variety of application scenarios.
Specifications

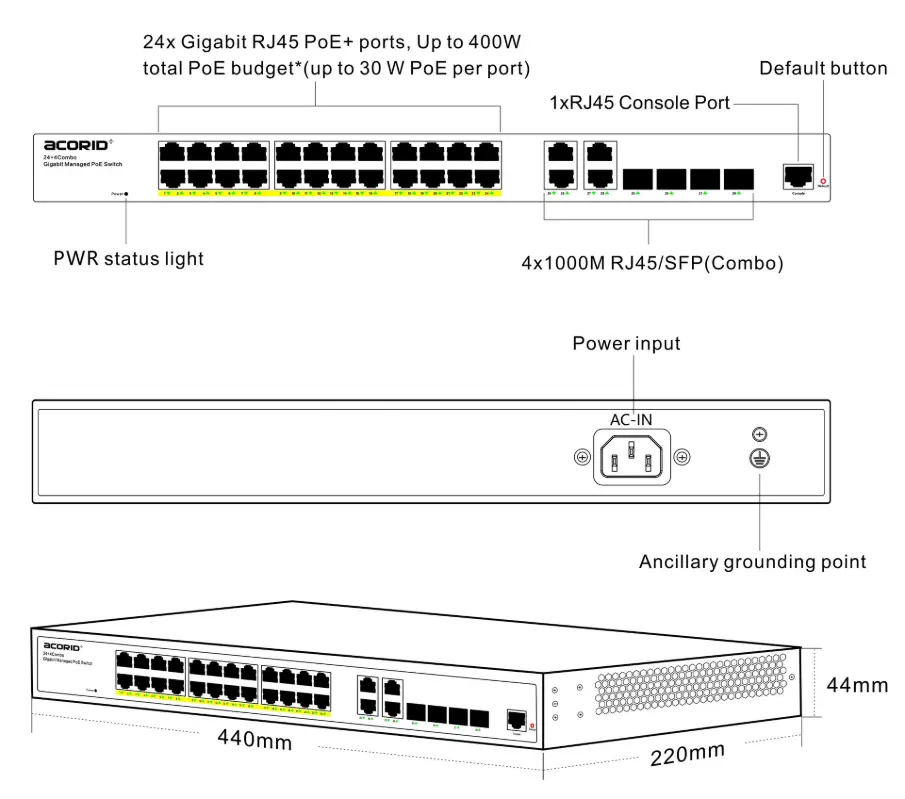

Downlink Ports 24*10/100/1000M RJ45 ports | Uplink ports 4*1000M RJ45 +4*1000M SFP（combo） |
Total Power Supply 450W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 56Gbps |
Packet Forwarding Rate 41.66Mpps | MAC Address 8K |
Port lightning protection ≥6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 285mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
