Product Description

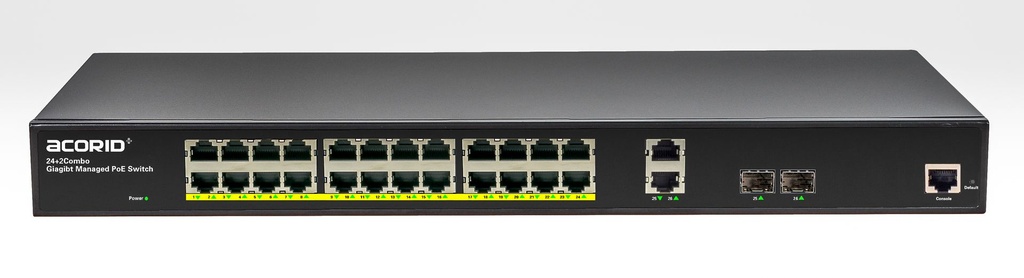

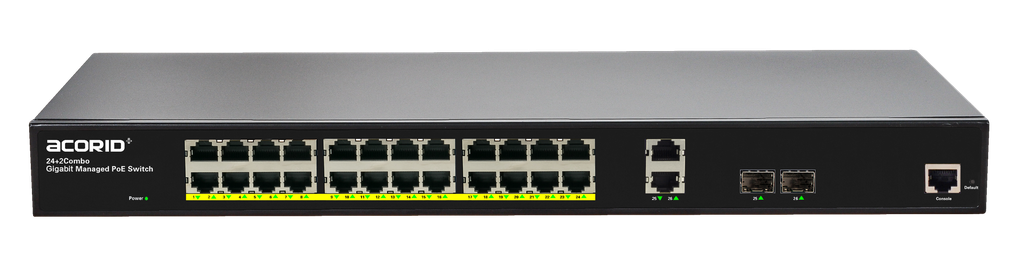

The LS6100G-24P2C-L2M managed switch is a 24-port full Gigabit Layer 2 managed PoE switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible and cost-effective full Gigabit access and uplink ports. , Supports complete security protection mechanism, perfect ACL/QoS strategy and flexible VLAN function, easy to manage and maintain, meet the user's requirements for easy management of network equipment, high security, low cost networking, suitable for campuses, hotels and corporate campuses Network access and convergence of multiple application scenarios.
Specifications
Downlink Ports 24*10/100/1000M RJ45 ports | Uplink ports 2*1000M+2*1000M SFP(Combo) |
Total Power Supply 450W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 52Gbps |
Packet Forwarding Rate 38.68Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 285mm × 44mm |
Working Temperature 0℃~45℃ | Storage Temperature - 20℃~70℃ |
