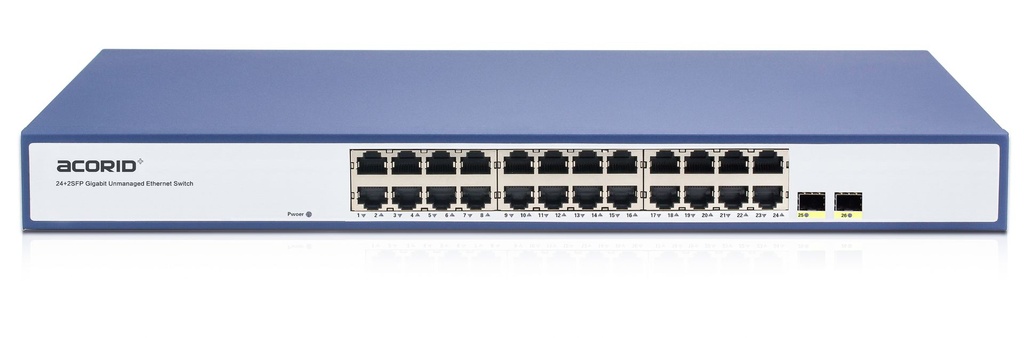

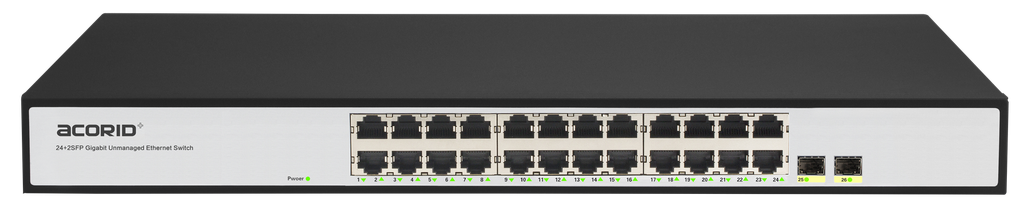

LS24G2F
* 24*10/100/1000M RJ45 ports
* 2*1000M SFP ports
* Backplane Bandwidth: 52Gbps
* Packet Forwarding Rate: 38.69Mpps
* Port supports MDI/MDIX auto flip function
Product Description
LS24G2F is a full Gigabit Division Ethernet switch developed independently, which provides 24*10/100 / 1000M adaptive RJ45 ports. 2 Gigabit SFP optical ports, each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 24*10/100 /1000M RJ45 ports | Uplink ports 2*1000M SFP ports |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 52Gbps |
Packet Forwarding Rate 38.69Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Videos
Resources
Specifications
| Language | Chinese or English |
| Power Cable | South African Standard or Indian Standard or International Standard or European Standard or British Standard or American Standard |
| Version | V1.0 or V1.2 |
| Attributes | Labeled or Neutral or OEM |
