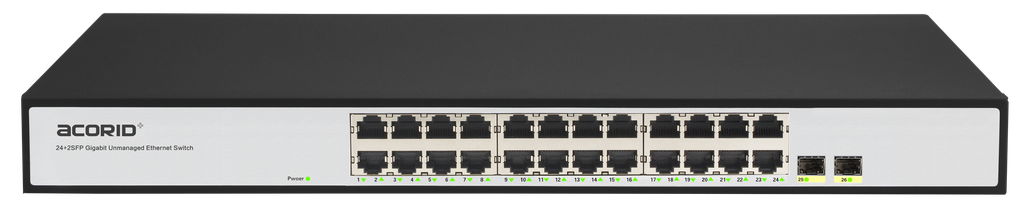

LS24G2F

https://www.acorid.com/web/image/product.template/55974/image_1920?unique=74b4208
(0 review)

* 24*10/100/1000M RJ45 ports
* 2*1000M SFP ports
* Backplane Bandwidth: 52Gbps
* Packet Forwarding Rate: 38.69Mpps
* Port supports MDI/MDIX auto flip function

0.12 0.12 USD 0.12

¥ 1.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 Description       Specifications       Videos       Resources       Reviews

Product Description

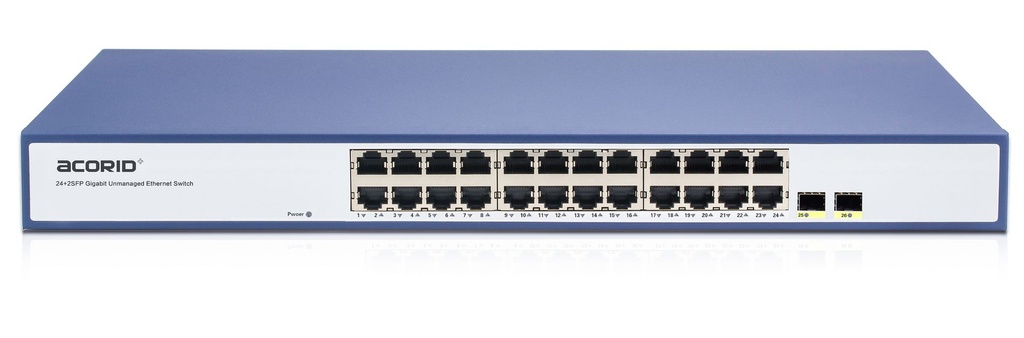

LS24G2F is a full Gigabit Division Ethernet switch developed independently, which provides 24*10/100 / 1000M adaptive RJ45 ports. 2 Gigabit SFP optical ports, each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.

Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.

Specifications


Downlink Ports

24*10/100 /1000M RJ45 ports

Uplink ports

2*1000M SFP ports

Total Power Supply


LED Indicator

PWR, Link / Act

Transmission Mode

IEEE802.3 full duplex flow control

Backplane Bandwidth

52Gbps

Packet Forwarding Rate

38.69Mpps

MAC Address

8K

Port lightning protection

6KV

Standard Protocol

IEEE802.3ab 1000 BASE-T

IEEE802.3z 1000 BASE-LX

Power Supply

AC 100~240V 50/60HZ

Size

440mm × 220mm × 44mm

Working Temperature

0℃~45℃

Storage Temperature

- 20℃~70℃
