Product Description

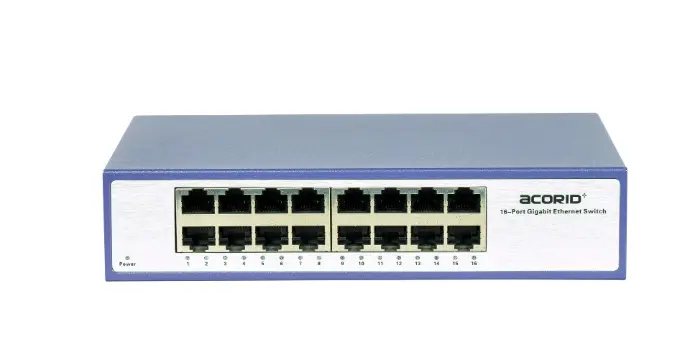

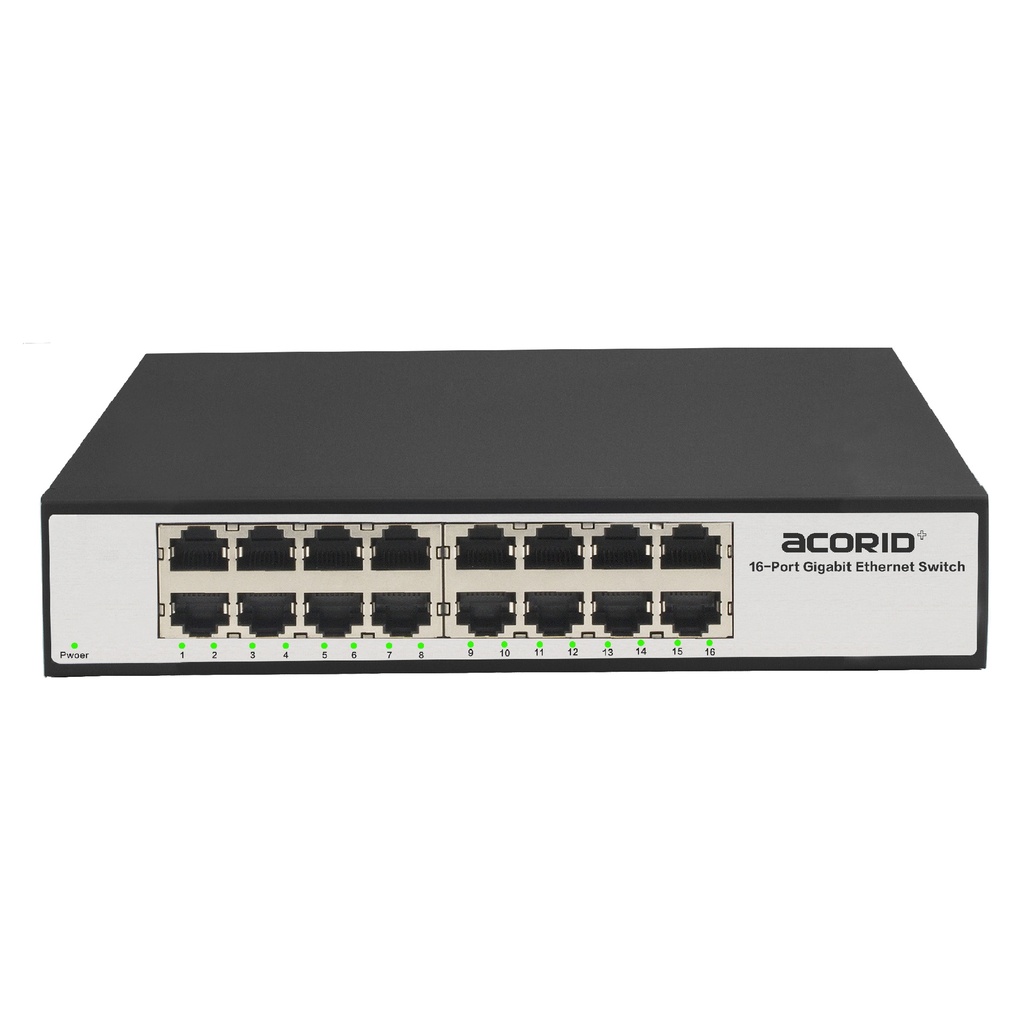

LS16GT is a fully Gigabit unmanaged Ethernet switch independently developed by ACORID, which provides 16*10/100/1000M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 16*10/100 /1000M RJ45 ports | Uplink ports |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 32Gbps |
Packet Forwarding Rate 23.8Mpps | MAC Address 4K |
Port lightning protection 4KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
Operating mode
Provide three exchange modes.
Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
Product reliability
Low power design, natural heat dissipation, ensure the stable operation of the product.
High redundancy design, providing long-term stable power output.
The working temperature of 0 ~ 45 ℃ improves the stability of the product in wide temperature environment
Ease of use
Plug and play, no configuration, simple and convenient.
The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power Understand the working state of the equipment.
