Product Description

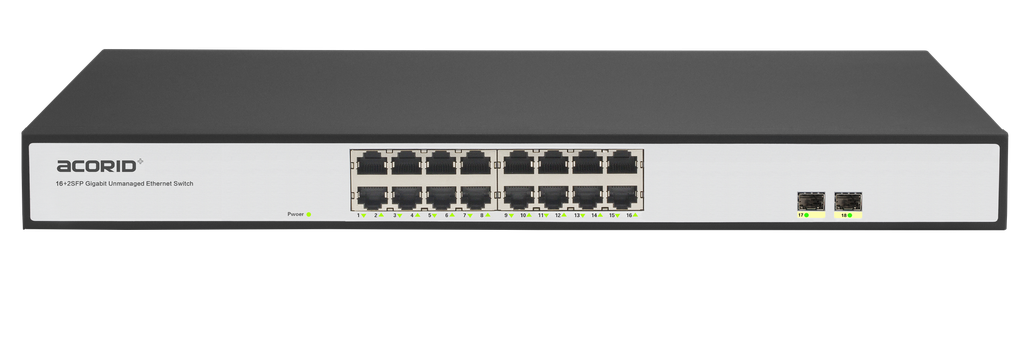

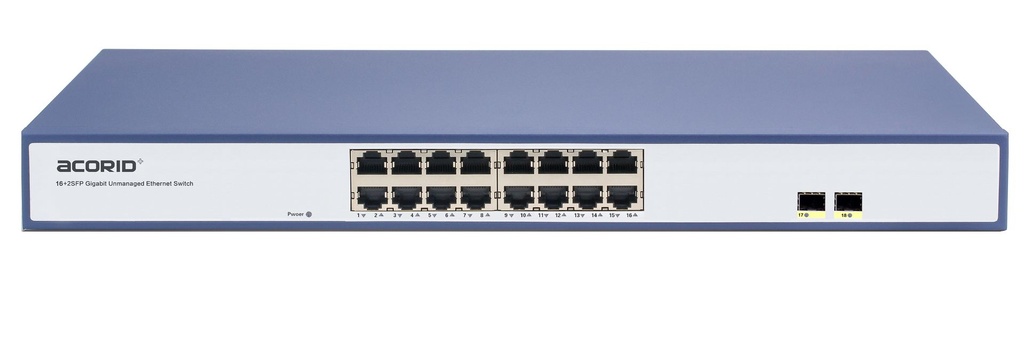

LS16G2F is a full Gigabit non-managed Ethernet switch, which is developed independently, provides 16*10/100 / 1000M adaptive RJ45 ports. 2*1000M SFP optical ports, each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 16*10/100/1000M RJ45 ports | Uplink ports 2*1000M SFP Fiber |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 36Gbps |
Packet Forwarding Rate 26.78Mpps | MAC Address 8K |
Port lightning protection 4KV | Standard Protocol IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power Understand the working state of the equipment.
