Product Description

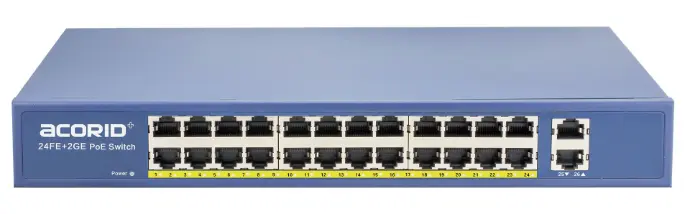

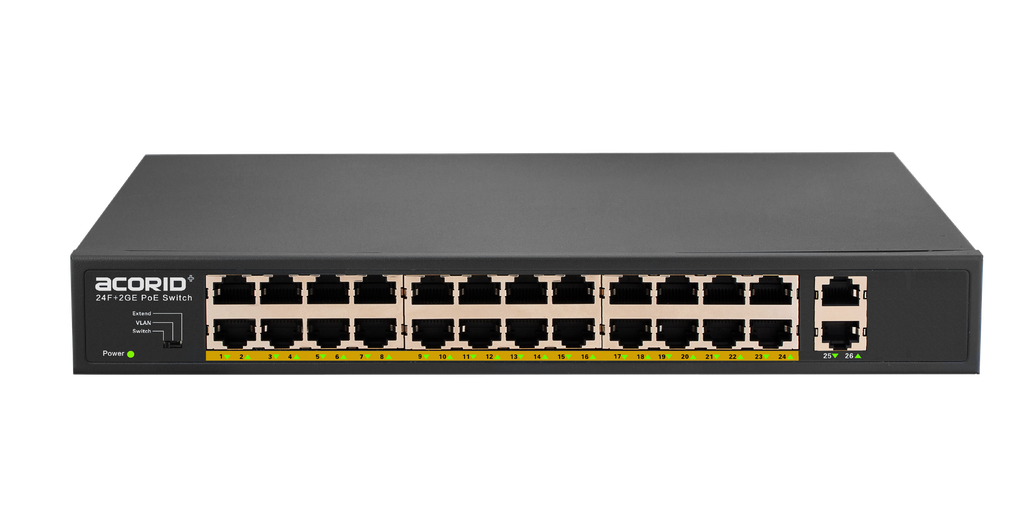

LS1126P is a 24-port 100M PoE switch independently developed by ACORID, which provides 24 10/100M adaptive RJ45 ports. 2 Gigabit RJ45 Uplink ports, each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. The downstream ports all support the IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
Prevents usage overload, the device is plug-and-play, no configuration is required, and easy to use.
Specifications
Downlink Ports 24*10/100M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 250W | LED Indicator Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 8.8Gbps |
Packet Forwarding Rate 6.5Mpps | MAC Address 4K |
Port lightning protection PoE ports: 2kV、Uplink ports: 6kV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 270mm × 180mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
