Product Description

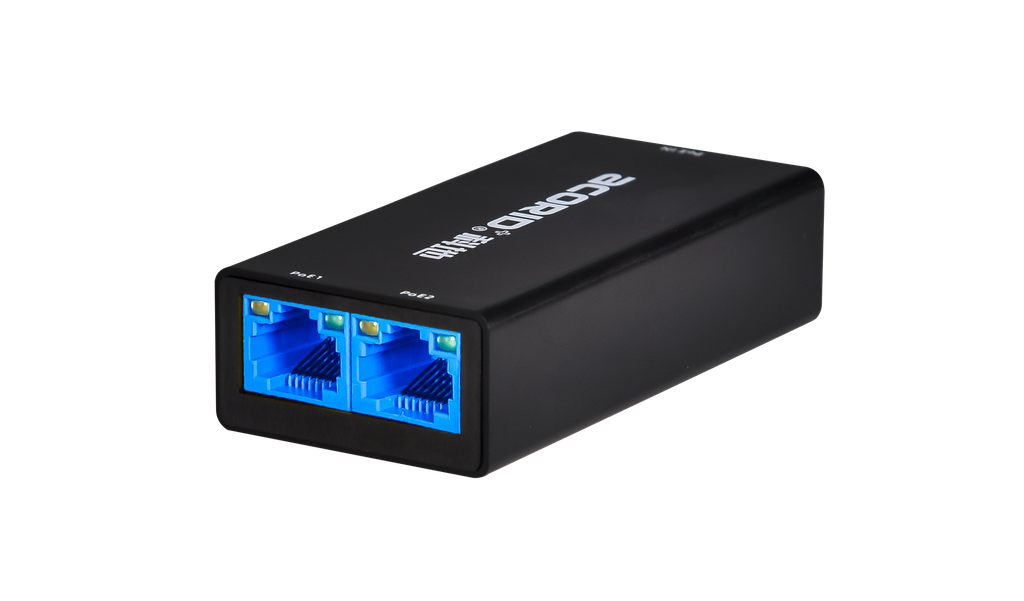

LS103G is a self-developed one-in-two-out Gigabit PoE Cascade PoE from C&T Communications, providing three 10/100/1000M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto flip-flop and wire speed forwarding. The PoE1 and PoE2 ports are PoE power supply ports, which support IEEE802.3af/at standard PoE power supply; the PoE IN port is a powered port, which can be powered directly by the PoE switch through the network cable.The LS103G supports 3-5 layers of cascade in the case of power tolerance, which can effectively save wiring costs and reduce construction difficulties.
Specifications
Downlink Ports 2*10/100M RJ45 ports | Uplink ports 1*1000M RJ45 Uplink ports |
Total Power Supply 30W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 Full-duplex flow control | Backplane Bandwidth 6Gbps |
Packet Forwarding Rate 4.46Mpps | MAC Address 2K |
Port lightning protection | Standard Protocol IEEE802.3i 10 BASE-T |
Power Supply DC 44-57V | Size 91.6mm × 52mm × 21.5mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
PoE power supply capacity
● PoE IN can receive up to 30W of power
● Maximum output power of single port is less than 30W
● Automatic detection and identification of standard PoE powered devices, intelligent power supply, no burning of non-standard PoE powered devices or common devices
Product Reliability
● Low power consumption design of host and natural heat dissipation to ensure stable operation of the product.
● High redundancy design to provide long-term stable PoE power output.
● 0~45℃ working temperature to enhance the stability of the product in wide temperature environment
Easy to operate
● Plug-and-play, no configuration required, simple and convenient
● Users can easily understand the working status of the device through PoE (PoE indicator); Link/Act (link/activity indicator)
