Product Description

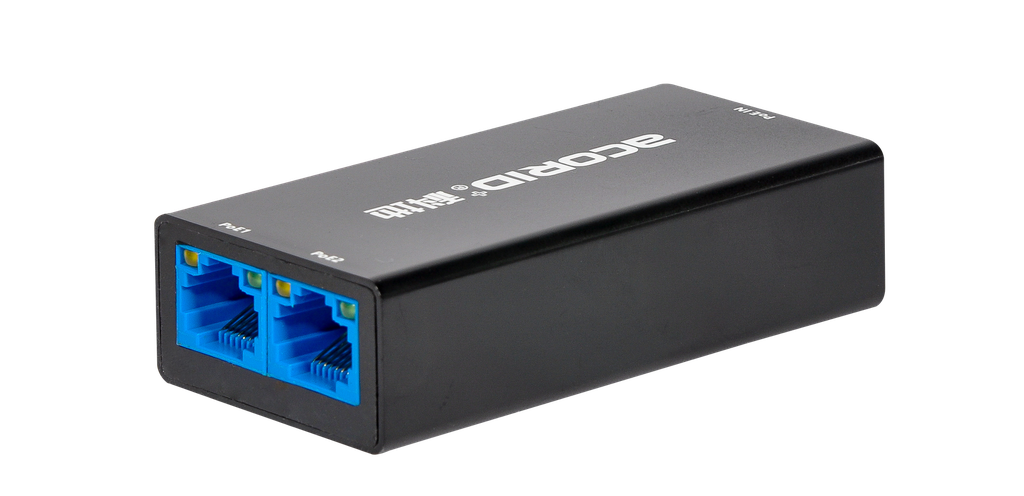

LS103 is a self-developed 100Gigabit one-in-two-out PoE cascade treasure, providing three 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire speed forwarding function. The PoE1 PoE2 port is a PoE power supply port, which supports IEEE802.3af/at standard PoE power supply; the PoE IN port is a powered port, which can be powered directly by the PoE switch through the network cable. LS103 supports 3-5 levels of cascading when power is tolerated, which can effectively save wiring cost and reduce construction difficulty.
Product hardware parameters
Model | LS103 |
Output Port | 2* 10/100M RJ45 adaptive RJ45 ports (PoE powered) |
Input port | 1 * 100M RJ45 Powered Port |
Maximum output power of the whole machine | 30W |
LED Indicator | PoE(PoEIndicator light) Link/Act(ink/activity indicator) |
Transmission Mode | IEEE802.3 Full-duplex flow control and Backpressure half-duplex flow control |
Backplane Bandwidth | 0.6Gbps |
Packet Forwarding Rate | 0.45Mpps |
MAC Address Capacity | 2K |
Standard Protocol | IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX IEEE802.3x Flow Control IEEE802.3az EEE |
Power Supply Specification | DC 44-57V Note: The output power + power consumption of the device cannot be greater than the input power. |
External Dimensions | 80mm × 40mm × 21mm |
Ambient Temperature | Working temperature: 0℃~45℃, working humidity: 10%~90% |
Storage temperature: -20℃~70℃, storage humidity: 5%~95% |
