Product Description

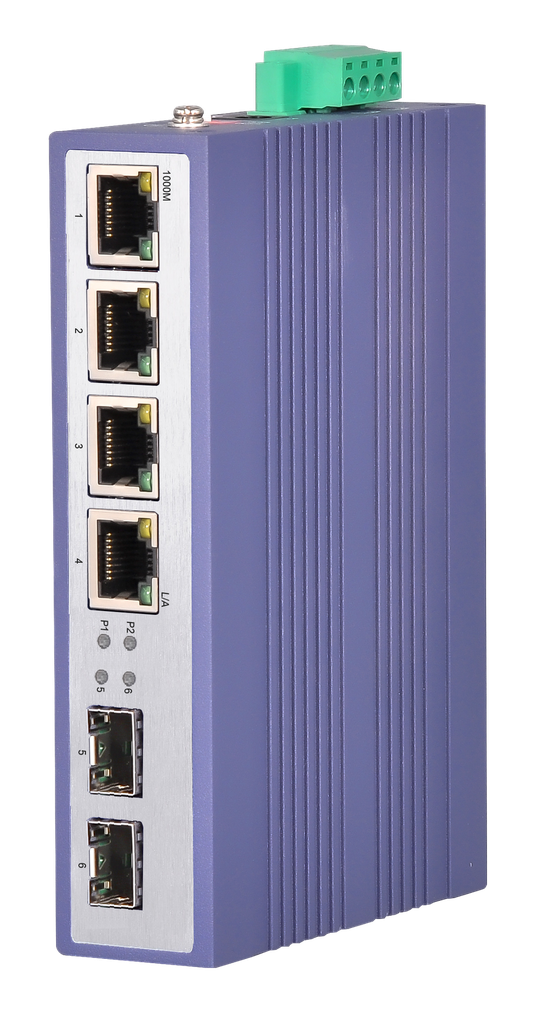

ILS6000G-4T2F is a Gigabit unmanaged industrial Ethernet switch, providing 4 Gigabit RJ45 ports, 2 Gigabit SFP slots, the switch through the fanless cooling circuit design, redundant circuit design, the device supports EMC industrial level 4 protection performance; corrugated high-strength aluminum enclosure, IP40 rating, low-power design, anti-vibration DIN-rail mounting, -40 ° C-75 ° C operating temperature, working in harsh environments; good EMC EMC performance and so on, are the conditions necessary to support the stability of network data transmission.
Specifications
4*10/100/1000M RJ45 |
2*1000M SFP | ||
Switching Capacity 12Gbps | Standards and Protocols | ||
Forwarding Rate 8.93mpps | Product size（W x D x H） 135mm x 92mm x 30mm | ||
Forwarding mode Store and forward | Product weight 0.85Kg | ||
MAC Address 8K | Installation DIN rail installation | ||
Input voltage DC 12~24V(6PIN Phoenix terminal), 1*DC interface | Operating temperature -40 ~ 75°C | ||
Max. Power Consumption 6W | Storage temperature -40 ~ 85°C | ||
Enclosure IP40 | Surge Protection 6KV | ||
ESD Protection 8KV~15KV | MTBF 100000H |
