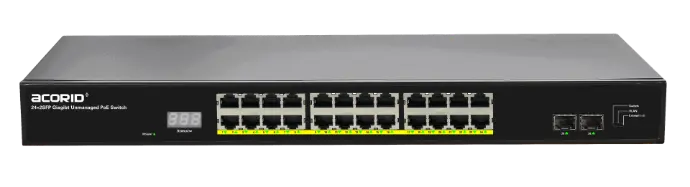

GLS5326PF
24*10/100/1000M RJ45 ports
2*1000M RJ45 ports（23、24）2*1000M SFP fiber ports
Backplane Bandwidth：52Gbps
Packet Forwarding Rate：38.69Mpps
Support smart PoE power supply and PoE power digital tube display
Product Description
GLS5326PF is a 24-port full gigabit digital display PoE switch independently developed by Codian Communications. It offers 24 10/100/1000M auto-negotiating RJ45 ports and 2 gigabit SFP Uplink ports. Each RJ45 port supports MDI/MDIX auto-sensing and wire-speed forwarding. All downstream ports support PoE+ power supply, with a single port PoE power of up to 30W and a maximum PoE output power of 250W for the entire device (450W is optional). As a PoE power supply device, it can automatically detect and identify standard-compliant powered devices and supply power to them through the network cable.
This device is plug-and-play, requires no configuration, and is easy and convenient to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 22*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports+2*1000M sfp fiber |
Total Power Supply 250W/450W | LED Indicator Link / Act |
Transmission Mode half duplex flow control | Backplane Bandwidth 52Gbps |
Packet Forwarding Rate 38.69Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 200~240V 50/60HZ | Size 440mm × 220mm × 44mm (250W) 440mm × 285mm × 44mm(450W) |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Videos
Resources
Specifications
| Language | Chinese or English |
| Power Cable | Australian Standard or South African Standard or Indian Standard or Korean Standard or International Standard or European Standard or British Standard or American Standard |
| Version | V2.0 or V1.1 |
| Power | 150W or 250W or 450W |
| Attributes | Labeled or Neutral |
