GLS1126PF
24*10/100/1000M RJ45 Adaptive RJ45 port (PoE power supply)
2*1000M SFP fiber ports
Backplane Bandwidth：36Gbps
Packet Forwarding Rate：38.69Mpps
Support smart PoE power
Support one-key Switch, VLAN, Extend1-8
Product Description

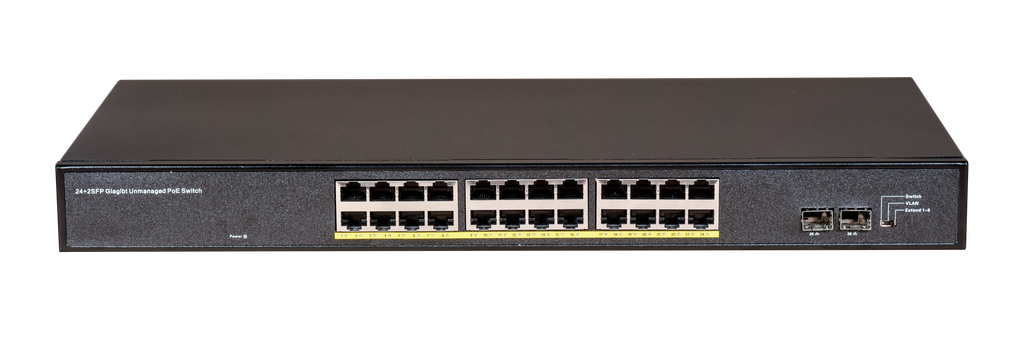

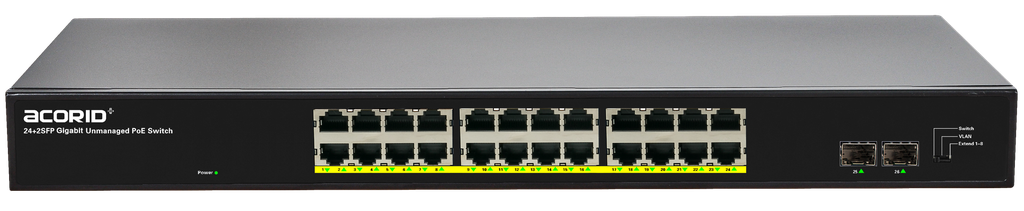

GLS1126PF is a 24 port full Gigabit PoE switch that provides 24 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W. The maximum PoE output power of the entire machine is 250W (400W optional). As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 24*10/100/1000M RJ45 ports | Uplink ports 2*1000M SFP fiber ports |
Total Power Supply 250W/400W | LED Indicator Link / Act |
Transmission Mode half duplex flow control | Backplane Bandwidth 52Gbps |
Packet Forwarding Rate 38.69Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Specifications
| Language | Chinese or English |
| Power Cable | Australian Standard or Korean Standard or International Standard or European Standard or British Standard or American Standard |
| Power | 250W or 400W or 400W(200-240V) or 250W(过认证) |
| Attributes | Labeled or Neutral |
