Product Description

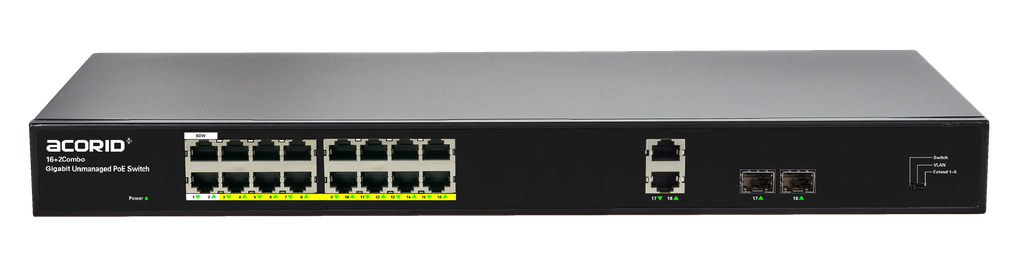

GLS1120PC is a full Gigabit PoE switch independently developed by ACORID, providing 16* 10/100/1000M adaptive RJ45 ports, 2 Gigabit RJ45 ports + 2 Gigabit SFP fiber(Combo)，and each RJ45 port supports MDI/mdix automatic flip and wire-speed forwarding functions. The downstream port supports the IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent consumption overload. The device is plug-and-play, requires no configuration, and is easy to use. It can be used for wireless coverage at the network access layer of security monitoring, hotels, campuses, dormitories, and small and medium-sized enterprises.
Features
Switching characteristics
Large buffer design, high definition video does not jam
Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control
Each RJ45 port supports MDI / mdix automatic flipping and line speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: When the switch is turned on, the rate of downstream 1-8 ports becomes 10M, and the transmission distance can reach up to 250m.
PoE power supply characteristics
Support IEEE 802.3af/at Poe power supply standard
Single port output power up to 30W，Ports 1-2 support 60W max
The SmartLink power management and steplink step-by-step start function guarantee the safe and stable operation of Kodi Poe switch; automatic detection and identification of standard Poe power receiving equipment, intelligent power supply, and will not burn non-standard Poe power receiving equipment or ordinary equipment
The PoE port supports the priority mechanism, and when the residual power is insufficient, it gives priority to the power supply of the high priority port
Product reliability
Low power design, natural heat dissipation, ensure the stable operation of the product.
High redundancy design, providing long-term stable Poe power output.
The working temperature of 0 ~ 45 ℃ improves the stability of the product in wide temperature environment
Ease of use
Plug and play, no configuration, simple and convenient.
The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power
Understand the working state of the equipment.
