Product Description

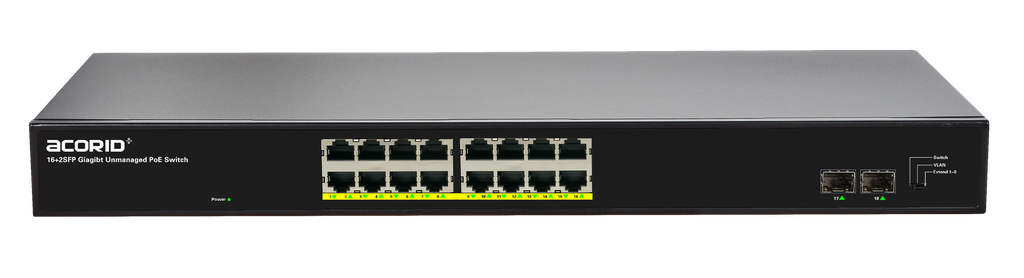

GLS1118PF is a 16-port Gigabit PoE switch independently developed by ACORID, which provides 16* 10/100/1000M adaptive RJ45 ports,2 Gigabit sfp ports, each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Support IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 16*10/100/1000M RJ45 | Switching Capacity 7.2Gbps |
Uplink ports 2*1000M SFP | Forwarding Rate 5.36Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 8K |
Power Consumption 150W/250W/450W | Surge Protection 4KV |
PoE Budget 137W/237W/437W | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 100-240V 50/60Hz | Product size（W x D x H） 440mm × 220mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 20℃～70℃ |
Installation Desktop & rack installation |
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
