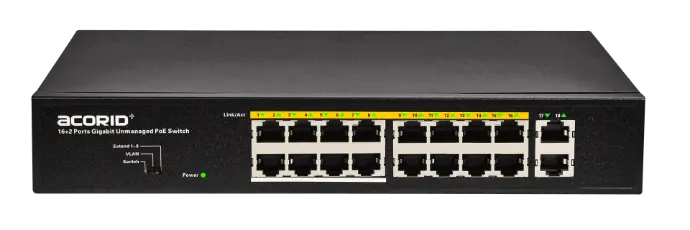

GLS1118P
16*10/100/1000M RJ45 Adaptive RJ45 port (PoE power supply)
2*1000M RJ45
Backplane Bandwidth：36Gbps
Packet Forwarding Rate：26.78Mbps
Support one-key Switch, VLAN, Extend
Product Description
GLS1118P is a 16-port Gigabit PoE switch independently developed by ACORID, which provides 16* 10/100/1000M adaptive RJ45 ports. 2 Gigabit RJ45 ports, each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Support IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 16*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 150W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 36Gbps |
Packet Forwarding Rate 26.78Mpps | MAC Address 4K |
Port lightning protection 4KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 270mm ×181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Specifications
| Language | Chinese or English |
| Power Cable | International Standard or European Standard or British Standard or American Standard |
| Version | V1.0 or V1.1 |
| Power | 150W or 250W or 150W(过认证) |
| Attributes | Labeled or Neutral |
