Product Description

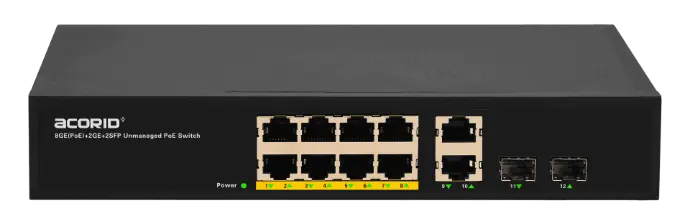

GLS1112PF is a full gigabit Ethernet PoE switch independently developed by ACORID. It provides 8* 10/100/1000M adaptive RJ45 ports, 2 Gigabit RJ45 ports and 2 Gigabit SFP uplink ports. All downlink ports support PoE+power supply, and comply with IEEE 802.3af/at standards. The single port PoE power can reach 30W, and the maximum PoE output power of the whole machine is 120W. As a PoE power supply equipment, it can automatically detect and identify the power receiving equipment that meets the standard and supply power to it through the network cable.
The device is plug and play, no configuration required, and easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises
Specifications
PoE ports 8*10/100/1000M RJ45 | Switching Capacity 24Gbps |
Uplink ports 2*1000M RJ45+2*1000M SFP | Forwarding Rate 17.86Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 4K |
Power Consumption 120w | Surge Protection 4KV |
PoE Budget 114w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 200-240V 50/60Hz | Product size（W x D x H） 270mm ×181mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
