Product Description

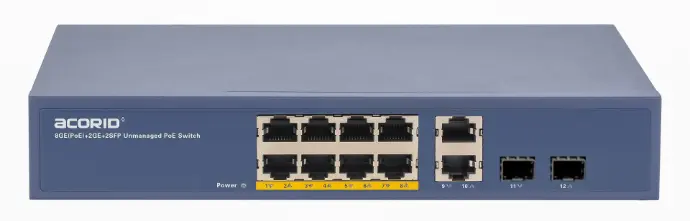

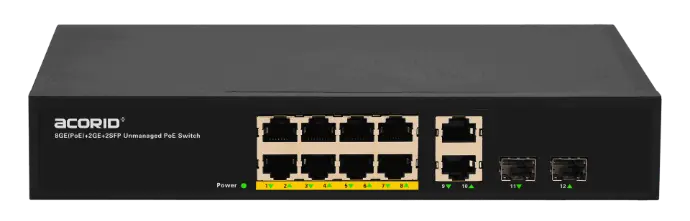

GLS1112PF is a full gigabit Ethernet PoE switch independently developed by ACORID. It provides 8* 10/100/1000M adaptive RJ45 ports, 2 Gigabit RJ45 ports and 2 Gigabit SFP uplink ports. All downlink ports support PoE+power supply, and comply with IEEE 802.3af/at standards. The single port PoE power can reach 30W, and the maximum PoE output power of the whole machine is 120W. As a PoE power supply equipment, it can automatically detect and identify the power receiving equipment that meets the standard and supply power to it through the network cable.
The device is plug and play, no configuration required, and easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises
Physical Characteristics
Downlink Ports
8*10/100/1000M PoE RJ45 | Uplink ports
2* 1000M RJ45+2*1000M SFP
|
Total Power Supply 120W | LED Indicator PWR, Link / Act |
Transmission Mode
IEEE802.3 full duplex flow control and
backpressure half duplex flow control
| Backplane Bandwidth 24Gbps |
Packet Forwarding Rate 17.86Mpps | MAC Address 4K |
Port lightning protection 6KV | POE Standard Protocol
IEEE 802.3at、IEEE 802.3af
|
Power Supply AC 200~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
Switching characteristics
Large buffer design, high definition video does not jam
Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control
Each RJ45 port supports MDI / MDIX automatic flipping and line speed forwarding functions
PoE power supply characteristics
Support IEEE 802.3af/at Poe power supply standard
Single port output power up to 30W
The SmartLink power management and steplink step-by-step start function guarantee the safe and stable operation of acorid Poe switch; automatic detection and identification of standard Poe power receiving equipment, intelligent power supply, and will not burn non-standard Poe power receiving equipment or ordinary equipment
The PoE port supports the priority mechanism, and when the residual power is insufficient, it gives priority to the power supply of the high priority port
Product reliability
Low power design, natural heat dissipation, ensure the stable operation of the product.
High redundancy design, providing long-term stable Poe power output.
The working temperature of 0 ~ 45 ℃ improves the stability of the product in wide temperature environment
Ease of use
Plug-and-play, no configuration, easy and convenient
Users can easily understand the working status of the device through the power indicator (Power), port status indicator (Link/Act) display
