Product Description

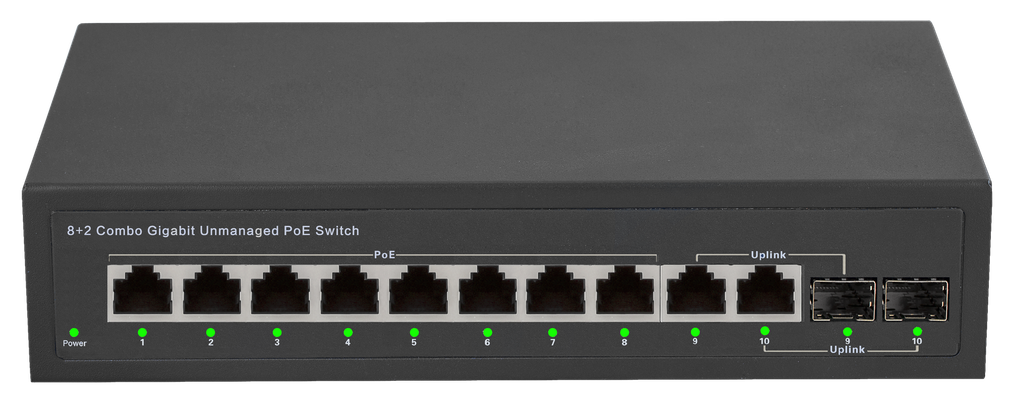

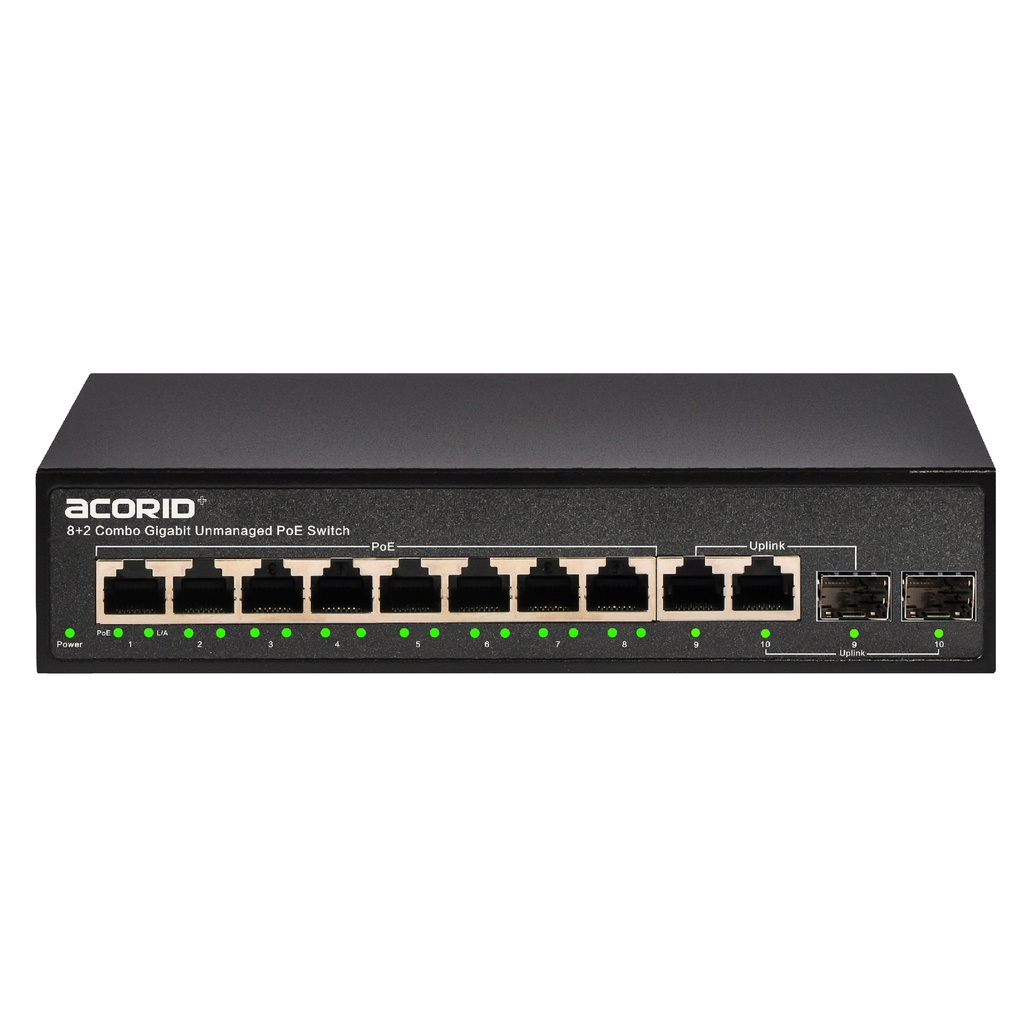

GLS1310PE is an 8-port Gigabit digital PoE switch independently developed by acorid, which provides 10 10/100/1000M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. The downstream ports all support the IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent overload of usage. The device is plug and play, no configuration is required, and it is simple and convenient to use. It can be used in the access layer of security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 8*1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 96W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 20Gbps |
Packet Forwarding Rate 14.88Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
Switching characteristics
● Large buffer design, high definition video does not jam
● Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control
● Each RJ45 port supports MDI / mdix automatic flipping and line speed forwarding functions
PoE power supply characteristics
● Support IEEE 802.3af/at Poe power supply standard
● Single port output power up to 30W
● Automatic detection and identification of standard PoE powered devices, intelligent power supply, will not ● burn non-standard PoE powered devices or ordinary equipment
Product reliability
● Low power design, natural heat dissipation, ensure the stable operation of the product.
● High redundancy design, providing long-term stable Poe power output.
● The working temperature of 0 ~ 45 ℃ improves the stability of the product in wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act) display.
