Product Description

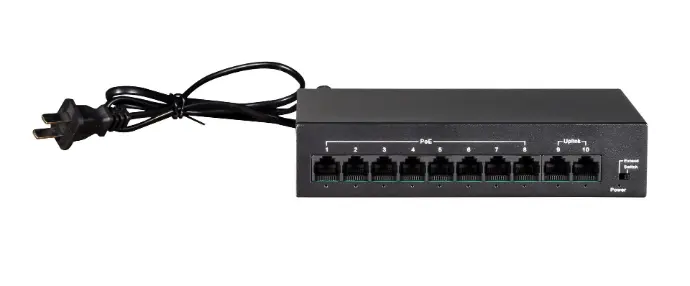

CS1110PM is a 10 port 100Mbps PoE switch independently developed by acorid Communication, providing 8 10/100M adaptive RJ45 ports and 2 100Mbps RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W. The maximum PoE output power of the entire machine is 83W. As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
This device is plug and play, requires no configuration, and is easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 8*10/100M RJ45 | Switching Capacity 2Gbps |
Uplink ports 2*100M RJ45 | Forwarding Rate 1.488Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 2K |
Power Consumption 83w | Surge Protection 4KV |
PoE Budget 77w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 200-240V 50/60Hz | Product size（W x D x H） 172mm × 101mm × 37mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop |
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides two exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● Automatic detection and recognition of standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
