Product Description

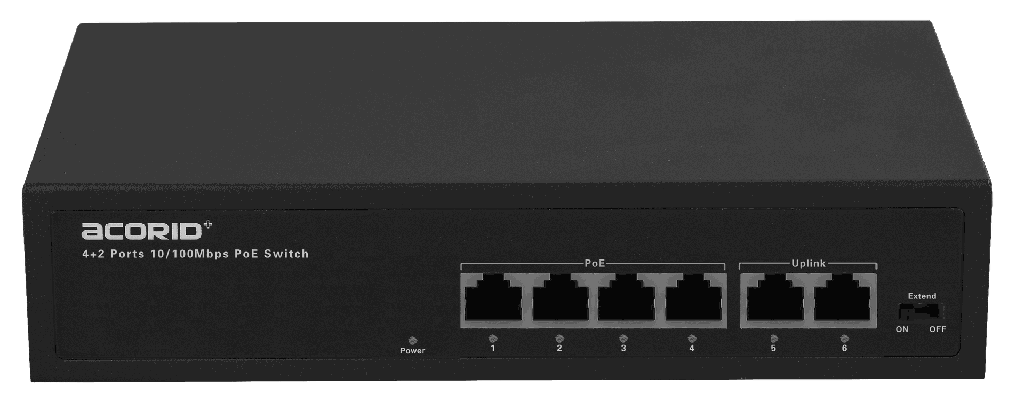

The CS1106P is a self-developed 6-port 100Gb PoE switch that provides 6* 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. It can automatically detect and identify the standard-compliant powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration required, easy and convenient to use. Can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Specifications
PoE ports 4*10/100M RJ45 | Switching Capacity 1.2Gbps |
Uplink ports 2*100M RJ45 | Forwarding Rate 0.89Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 2K |
Power Consumption 65w | Surge Protection 4KV |
PoE Budget 60w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage 100-240V 50/60Hz | Product size（W x D x H） 200mm × 133mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
