Product Description

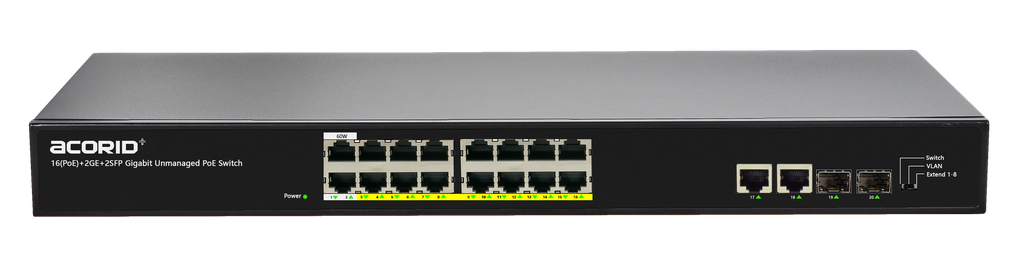

CGS5120PF is a full Gigabit PoE switch independently developed by ACORID, providing 16* 10/100/1000M adaptive RJ45 ports, 2 Gigabit RJ45 ports + 2 Gigabit SFP fiber(Combo)，and each RJ45 port supports MDI/mdix automatic flip and wire-speed forwarding functions. The downstream port supports the IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent consumption overload. The device is plug-and-play, requires no configuration, and is easy to use. It can be used for wireless coverage at the network access layer of security monitoring, hotels, campuses, dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 16*10/100/1000M RJ45 | Switching Capacity 36Gbps |
Uplink ports 2*1000M RJ45+ 2*1000M SFP(Combo) | Forwarding Rate 26.78Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 4K |
Power Consumption 150w/250w | Surge Protection 4KV |
PoE Budget 135w/235w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 200-240V 50/60Hz | Product size（W x D x H） 400mm ×220mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 20℃～70℃ |
Installation Desktop & rack installation |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
