Product Description

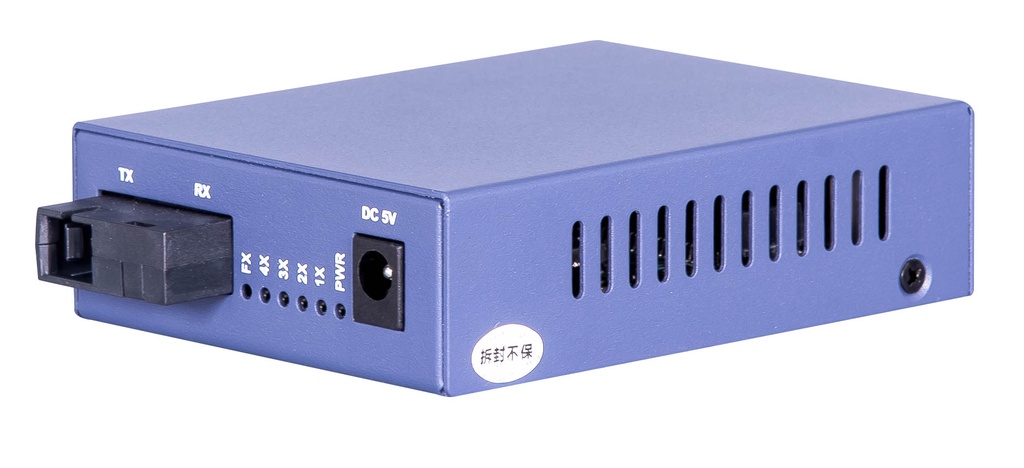

AC300G-4T1F A/B is a gigabit 1 optical to 4 electrical fiber optic transceiver independently developed by Kedi Communication. It can convert electrical port signals into optical port signals and transmit signals over long distances through optical fibers. It is suitable for applications such as security monitoring, wireless networking, and fiber optic access. Using wavelength division multiplexing technology, it can carry multiple wavelength channels on a single fiber without interference. Only one fiber is required for data transmission and reception, which can save half of the fiber cabling cost
Product performance
● Comply with IEEE802.3i, IEEE802.3u, and IEEE802.3ab standards;
● Provides 1 SC-type optical fiber interface and 4 RJ45 interfaces;
● The twisted-pair port supports 1000Mbps full duplex and automatic MDI/MDIX, eliminating the need for cable selection
● The maximum transmission distance for twisted-pair cables is 100 meters, while for single-mode fiber optic cables, it is 20 kilometers;
● An external DC power adapter is provided.
Mode | AC300G-4T1F |
| port | 4*10/100/1000M RJ45 +1*1000M SC fiber optic interface |
LED light | PWR( Power led、FDX( duplex led、L/A( link active led、TX( port led、FX( sfp led) |
forwarding mode | store and forward |
transfer mode | IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
Transmission wavelength and distance | wavelength:1310nm/1550nm 、distance:20Km |
optical parameters | Average emitted optical power：15~ 5dBm reception sensitivity:32.5dBm |
backplane bandwidth | 10Gbps |
Packet Forwarding Rate | 7.44Mpps |
MAC address | 2K |
Standard Protocol | IEEE802.3i 10 BASE-T， IEEE802.3u 100 BASE-TX IEEE802.3u 100 BASE-FX IEEE802.3aab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE |
Power Specifications | DC 5V/1A |
| Product size | 95mm × 70mm × 26mm |
| operate temperature | 0℃～45℃ |
