AC300G-1T1SC
* default specifications 1
* default specifications 2
Product Description
The CS1110PE is a self-developed 10-port 100Gb PoE switch that provides 10 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. It can automatically detect and identify the standard-compliant powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration required, easy and convenient to use. Can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Features
- Large buffer design, high-definition video does not freeze
- Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
- Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
- Provides three exchange modes.
- Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
- Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
- The maximum output power of a single port can reach 30W
- SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
- The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
- High redundancy design, providing long-term stable PoE power output.
- 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
- Plug and play, no need to configure, simple and convenient
- Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
Ordering information
- Nothing Special
Product Description
CS1110P | 8*10/100M Auto-negotiation RJ45 ports + 2*100M RJ45 Uplink ports |
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*100M RJ45 Uplink ports |
Total Power Supply 96W | LED Indicator PWR, Link / Act |
Transmission Mode half duplex flow control | Backplane Bandwidth 2Gbps |
Packet Forwarding Rate 1.488Mpps | MAC Address 4K |
Port lightning protection ≥6KV | Standard Protocol IEEE802.3i 10 BASE-T |
Power Supply AC 200~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Videos
Resources
Specifications
| Language | Chinese or English |
| Power Cable | South African Standard or International Standard or European Standard or American Standard |
| Kilometers | 3km or 20km or 2km or 40km |
| Attributes | Labeled or Neutral |

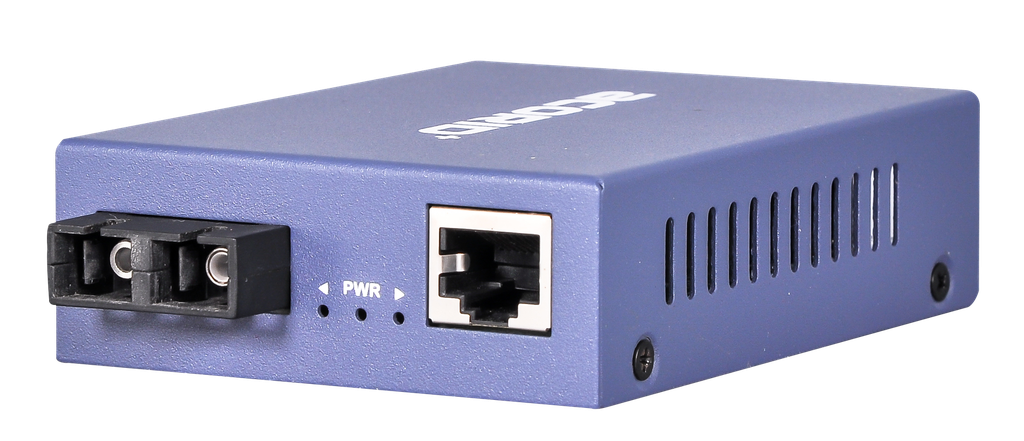

| Optical Module | Single Mode Single Fiber or Single Mode Multifiber or Multimode Multifiber |
