Product Description

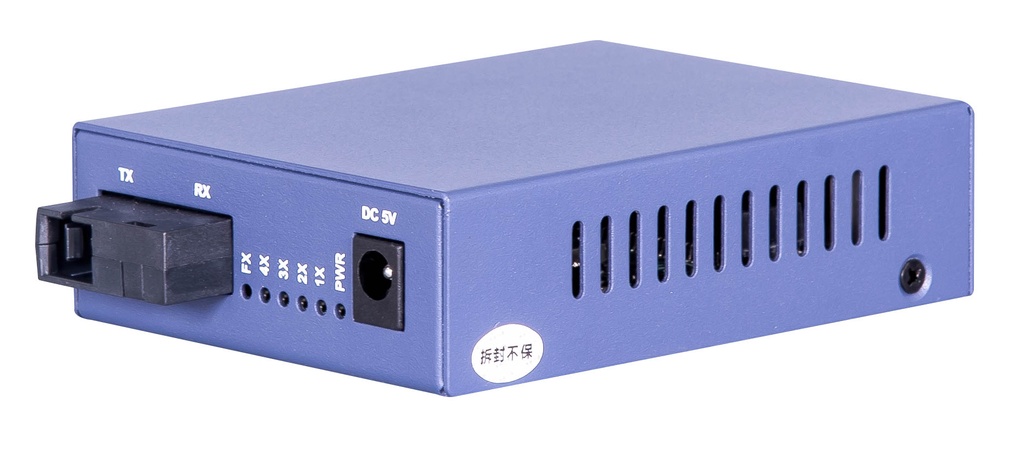

AC300-1T1SC is a 100M single-mode single-fiber optical transceiver independently developed by Kedi Communication. It can convert electrical port signals into optical port signals and transmit long-distance signals through optical fibers, suitable for applications such as security monitoring, wireless networking, and fiber optic access. Utilizing wavelength division multiplexing technology, it carries multiple wavelength channels on a single fiber without interference. Only one fiber is required for data transmission and reception, which can save half of the fiber cabling cost.
Product performance
● Comply with IEEE802.3, IEEE802.3i, and IEEE802.3u standards;
● Provide 1 SC-type fiber optic interface and 4 RJ45 interface;
● The twisted-pair port supports 100Mbps full duplex and automatic MDI/MDIX, eliminating the need for cable selection
● The maximum transmission distance for twisted-pair cables is 100 meters, while for single-mode fiber optic cables, it is 20 kilometers;
● An external DC power adapter is provided.
Mode | AC300-4T1SC(A/B) |
| port | 4*10/100M RJ45+1*100M SC fiber optic interface |
LED light | PWR( Power led、FDX( duplex led、L/A( link active led、TX( port led、FX( sfp led) |
forwarding mode | store and forward |
transfer mode | IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
Transmission wavelength and distance | wavelength:1310nm/1550nm 、distance:20Km |
optical parameters | Average emitted optical power：15~ 5dBm reception sensitivity:32.5dBm |
backplane bandwidth | 1Gbps |
Packet Forwarding Rate | 0.744Mpps |
MAC address | 2K |
Standard Protocol | IEEE802.3i 10 BASE-T， IEEE802.3u 100 BASE-TX IEEE802.3u 100 BASE-FX IEEE802.3x Flow Control IEEE802.3az EEE |
Power Specifications | DC 5V/1A |
| Product size | 95mm × 70mm × 26mm |
| operate temperature | 0℃～45℃ |
