Product Description

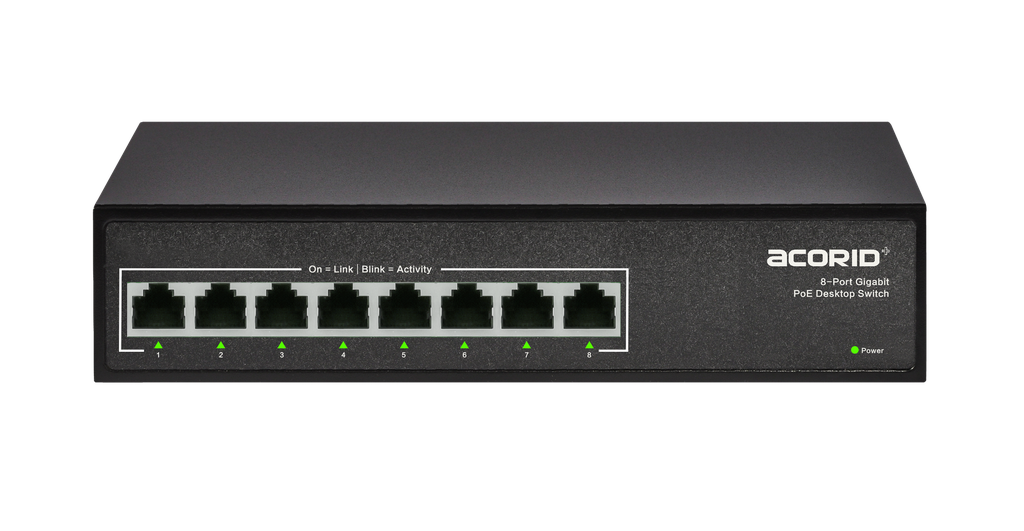

The GLS1108P is a 8-port Gigabit PoE switch developed by ACORID, providing 8*10/100/1000M adaptive RJ45 ports, and each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. The downlink ports all support IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable.
The device is plug-and-play, no need to configure, simple and convenient to use. It can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Specifications
PoE ports 8*10/100/1000M RJ45 | Switching Capacity 16G |
Uplink ports - | Forwarding Rate 11.9Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 4K |
Power Consumption 96w | Surge Protection 4KV |
PoE Budget 90w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage 100-240V 50/60Hz | Product size（W x D x H） 200mm × 133mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation
Desktop & rack installation
|
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
