Product Description

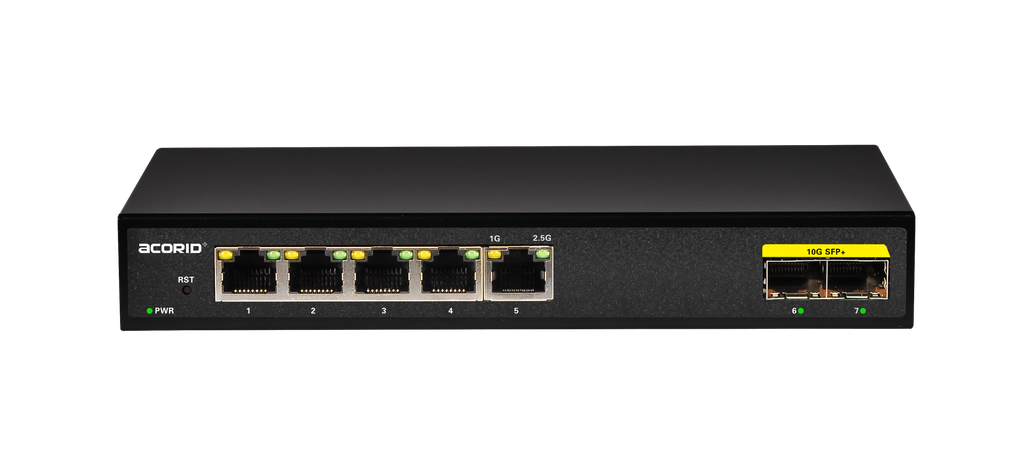

LS5H2X is an5-port 2.5G 10G uplink lightweight Ethernet switch independently designed by Acorid. It provides 5*2.5G RJ45 ports and 2*10G SFP+optical ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions.
This device has WEB page management function, supports VLAN division, port aggregation, port mirroring and other functions, with more efficient network maintenance and lower after-sales costs. It can configure switches without leaving home to meet users' networking needs for easy management, high security and low cost of network equipment. It is suitable for campus, hotel and enterprise park network access application scenarios.
Specifications
Interface 5*10/100/1000/2500Mbps |
2*10G SFP+ | ||
Switching Capacity
|
IEEE802.3ab 1000 BASE-T IEEE802.3bz 2500 BASE-T IEEE 802.3z 1000 BASE-LX IEEE802.3ae 10G Base | ||
Forwarding Rate 48.36Mpps | Product size（W x D x H）
| ||
Forwarding mode Store-and-Forward | Product weight | ||
MAC Address 16k | Installation desktop | ||
Power Supply
| Operating temperature 0℃～45℃ | ||
Max. Power Consumption 18W | Storage Temperature - 20℃～70℃ |
Product performance
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the device's working status through the power indicator light (PWR) and port status indicator lights (1G, 2.5G)
