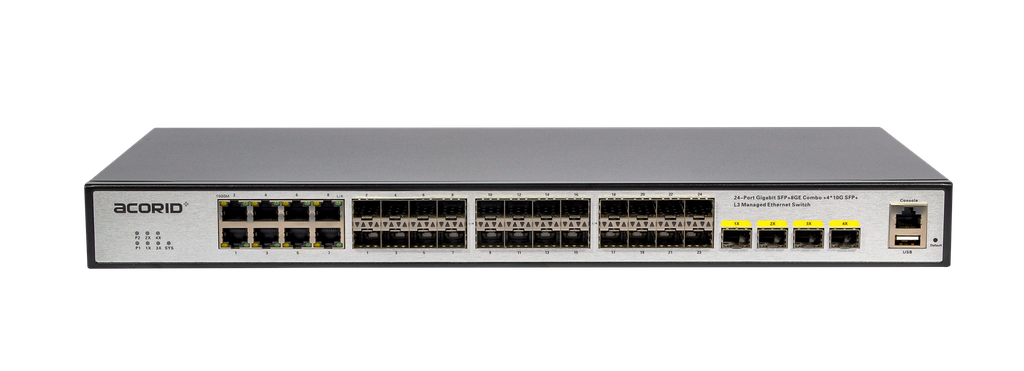

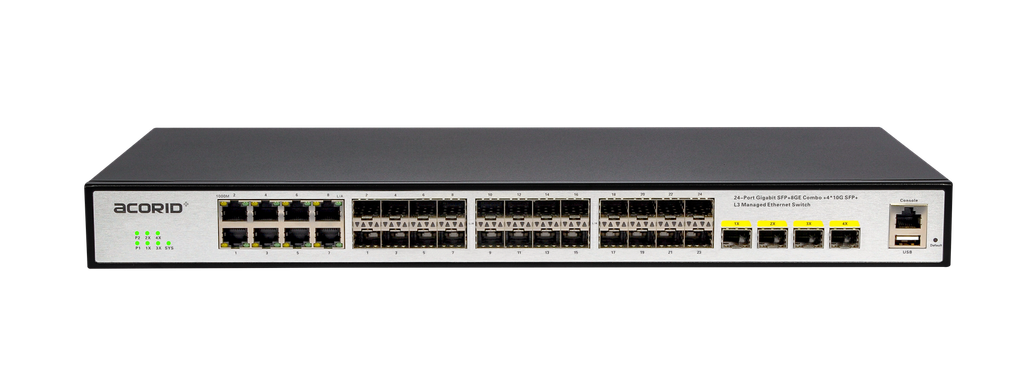

LS6100G-24F8T4X-L3M-AC

https://www.acorid.com/web/image/product.template/56060/image_1920?unique=74b4208
(0 review)

*8*1000M Combo ports (8*10/100/1000M adaptive RJ45 ports, 8*1000M SFP optical ports) + 16 independent Gigabit SFP optical ports
*4*10G SFP+
* Backplane Bandwidth:368Gbps
* Packet Forwarding Rate:95.23Mpps
* 3-layer network management function

0.12 0.12 USD 0.12

¥ 1.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

 Description       Specifications       Videos       Resources       Reviews

Product Description


LS6100G-24F8T4X-L3M 10-Gigabit uplink 24-port all-optical managed switch is a convergent switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible all-gigabit access and high-speed Cost-effective 10 Gigabit uplink ports, supporting Layer 3 routing protocols, complete security protection mechanisms, complete ACL/QoS strategies and rich VLAN functions, easy to manage and maintain, and suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses.

Specifications


Downlink Ports

8*1000M Combo ports (8*10/100/1000M RJ45 ports, 8*1000M SFP optical ports)

16 independent Gigabit SFP optical ports

Uplink ports

4*10G SFP+

Total Power Supply


LED Indicator

P1, P2 PWR, Link / Act, SYS

Transmission Mode

IEEE802.3 full duplex flow control

Backplane Bandwidth

128Gbps

Packet Forwarding Rate

95.23Mpps

MAC Address

16K

Port lightning protection

6KV

Standard Protocol

IEEE802.3ab 1000 BASE-T

IEEE802.3z 1000 BASE-LX

IEEE802.3ae 10GBase

Power Supply

AC 100~240V 50/60HZ

Size

440mm × 220mm × 44mm

Working Temperature

0℃~45℃

Storage Temperature

- 20℃~70℃
