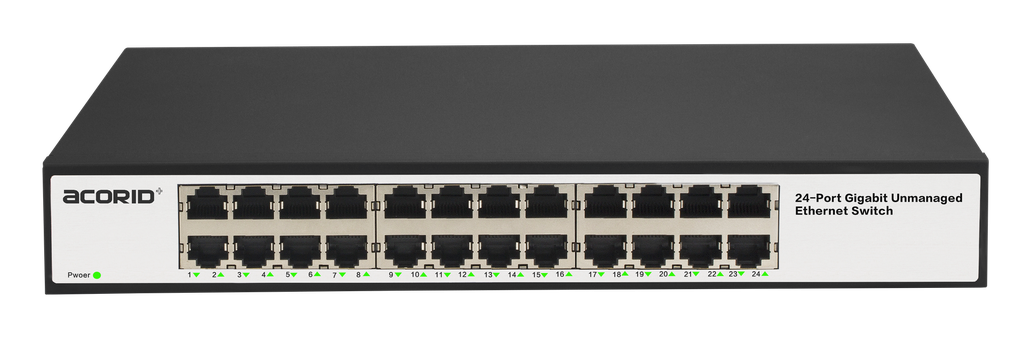

LS24GD
* 24*10/100/1000M RJ45 ports
* Backplane Bandwidth: 48Gbps
* Packet Forwarding Rate: 35.71Mpps
* Port supports MDI/MDIX auto flip function
* Support one-key Switch, VLAN, Extend
Product Description
LS24GD is a full Gigabit Division Ethernet switch developed independently, which provides 24*10/100/1000M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating mode
Provide three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power Understand the working state of the equipment.
Physical Characteristics
Model | LS24GD |
Downlink ports | 24*10/100 /1000M RJ45 ports |
Bandwidth | 48Gbps |
Packet Forwarding Rate | 35.71Mpps |
MAC address | 8K |
LED indicator | PWR, Link / Act |
transmission mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Standard protocol | IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE |
Power supply | AC 100~240V 50/60HZ |
size | 270mm × 181mm × 44mm |
working temperature | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
ordering information
LS24GD | 24*10/100/1000M RJ45 Ports |
Specifications
Downlink Ports 24*10/100/1000M RJ45 Ports | Uplink ports |
Total Power Supply | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 48Gbps |
Packet Forwarding Rate 35.7Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Videos
Resources
Specifications
| Language | Chinese or English |
| Power Cable | Brazilian Standard or International Standard or European Standard or British Standard or American Standard |
| Version | V1.0 or V2.0 or V2.1 |
| Attributes | Labeled or Neutral |
