Product Description

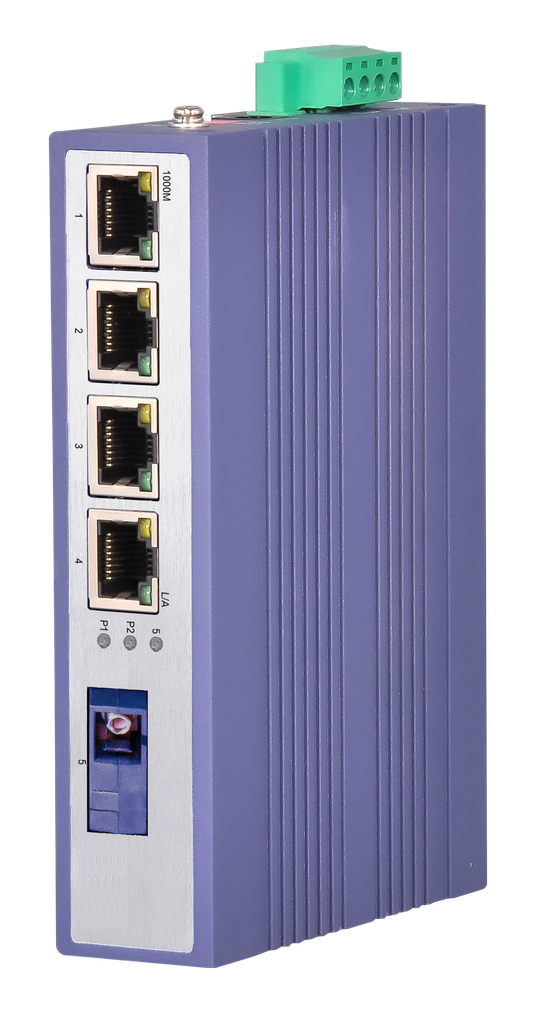

ILS6000G-4T1SC is a gigabit unmanaged industrial Ethernet switch, providing 4 gigabit RJ45 ports and 1 gigabit SC fiber interface. The switch adopts fanless cooling circuit design and redundant circuit design. The device supports EMC industry 4 High-grade protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, anti-vibration rail installation, working temperature of -40℃-75℃, can work in harsh environments; good EMC electromagnetic compatibility performance, etc., They are all necessary conditions to support the stable transmission of network data.
Model | ILS6000G-4T1SC |
Port description | 4 x electrical port (RJ45) 1000BASE-T 1 x optical port (SFP) 1000BASE-X |
Light parameters | Average transmit optical power: 15~ 5dBm Receive sensitivity: 32.5dBm |
Optical port characteristics | Interface type: RJ45 Speed: 10/100/1000Mbps Duplex Mode: Full/Half Duplex Connection method: MDI/MDIX automatic flip |
Electrical port characteristics | Interface type: RJ45 Rate: 10/100/1000Mbps adaptive Duplex mode: full/half duplex Connection mode: MDI/MDIX automatic flip |
Protocol standard | IEEE802.3i 10 BASE-T， IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.3az EEE |
Exchange performance | Backplane bandwidth: 10Gbps Packet forwarding rate: 7.44Mpps MAC address: 8K Packet buffer: 2Mbit Forwarding mode: store and forward |
power supply | Input power: DC 12~24V (6PIN Phoenix terminal), 1*DC interface Power consumption: full load <6W Dual power supply: support Redundant protection: support Reverse connection protection: support |
Mechanical structure | Shell material: metal Protection level: IP40 Size: 135*92*30mm (Excluding connector protruding part and DIN rail assembly size) Weight: 0.85Kg Installation method: DIN rail installation |
surroundings | Working temperature: -40℃~75℃ Storage temperature: -40℃~85℃ Relative humidity: 5%~95% RH (non-condensing) |
Industry Standard | IEC61000-4-2 Level 4 (8K/15K) (ESD - Electrostatic discharge) IEC61000-4-3 Level 3 (10V/m) (RS-Radiated Surge Immunity) IEC61000-4-4 Level 3 (1V/2V) (EFI-Express Firing Interference) IEC61000-4-5 Level X (6KV/6KV) (8/20us) (Surge-surge power) IEC61000-4-5 Level X (6KV/6KV) (10/700us) (Surge-Ethernet port) IEC61000-4-6 Level 3 (10V/m) (CS-conducted immunity) IEC61000-4-8 Level 4 (30A/m) (PFMF) Mechanical: IEC60068-2-6 (Vibration) IEC60068-2-32 (Free fall) 0.5m |
Warranty | Warranty period: 3 years (can be extended) |
