Product Description

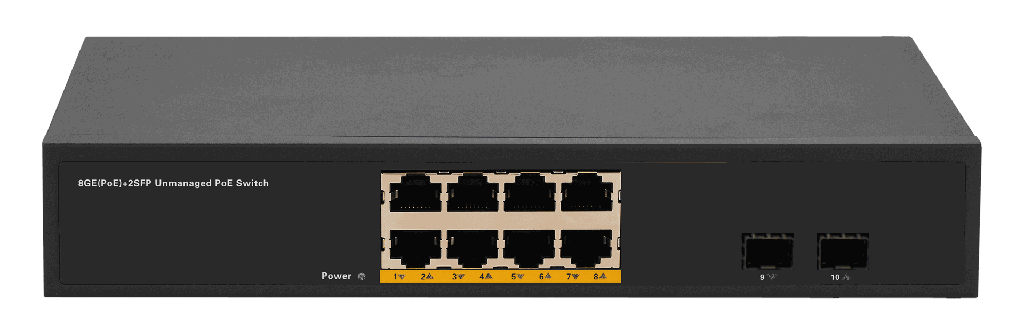

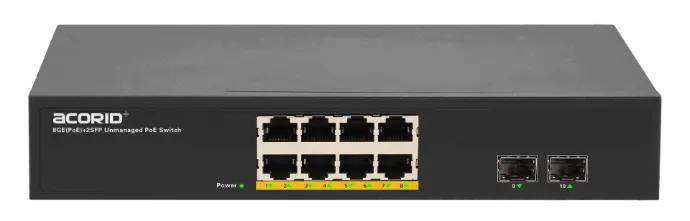

GLS1110PF is an 8-port Gigabit PoE switch developed by acorid , providing 8*10/100/1000M adaptive RJ45 ports. 2*1000M SFP fiber ports, each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding function. The downlink ports all support IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the standard compliant powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration required, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*1000M SFP fiber ports |
Total Power Supply 120W/150W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 20Gbps |
Packet Forwarding Rate 14.88Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 200~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
