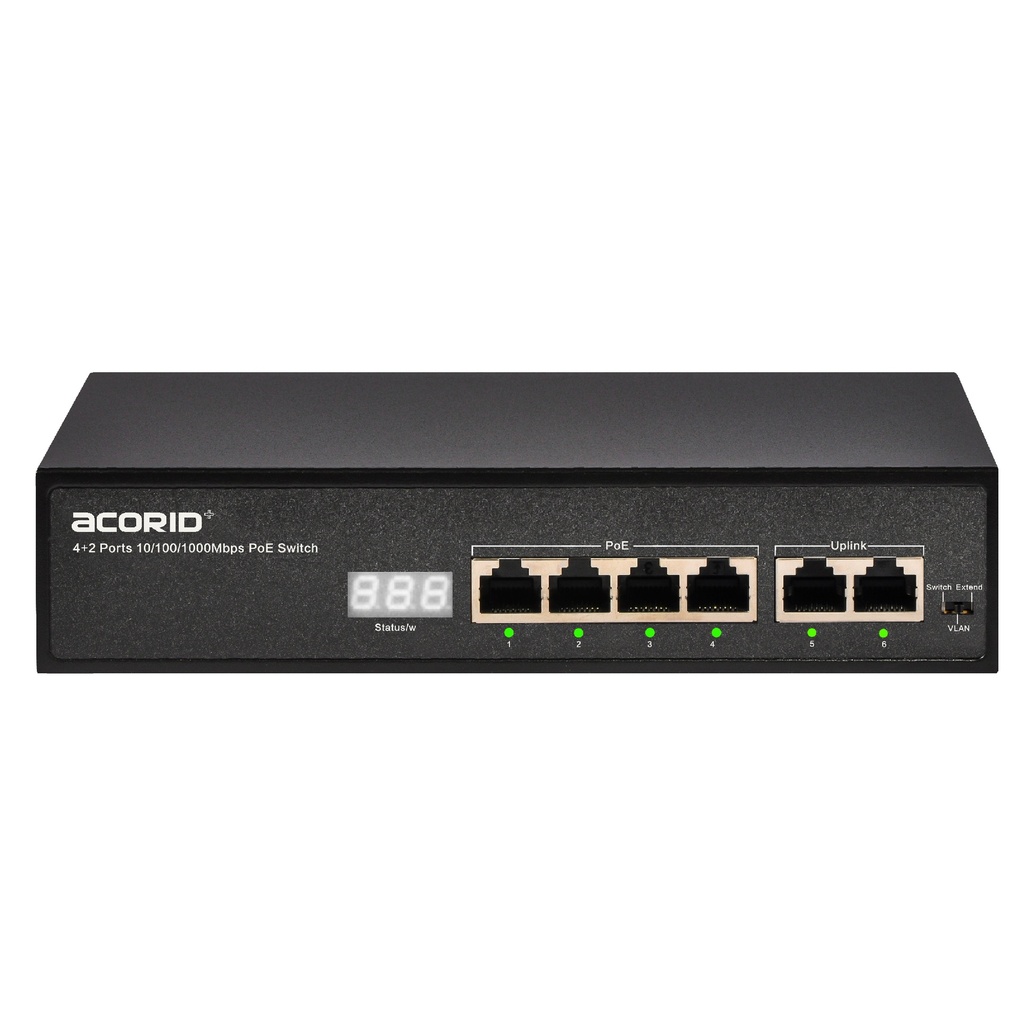

GLS5306P
4*10/100/1000M RJ45 Adaptive RJ45 port (PoE power supply)
2*1000M RJ45 Uplink ports
Backplane Bandwidth：12Gbps
Packet Forwarding Rate：8.92Mpps
Support smart PoE power supply and PoE power digital tube display
Support one-key Switch, VLAN, Extend
Product Description
GLS5306P is a 6-port Gigabit digital PoE switch independently developed by acorid , providing 6 10/100/1000M adaptive RJ45 ports. 2*1000M RJ45 Uplink ports，Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. The downstream ports all support the IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent overload of usage. The device is plug and play, no configuration is required, and it is simple and convenient to use. It can be used in the access layer of security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 4*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 65W | LED Indicator Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 12Gbps |
Packet Forwarding Rate 8.92Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Specifications
| Language | Chinese or English |
| Power Cable | Australian Standard or South African Standard or Japanese Standard or International Standard or European Standard or British Standard or American Standard |
| Version | V1.0 or V3.0 |
| Attributes | Labeled or Neutral or OEM |
| Power | 65W or 65W(过认证) |
